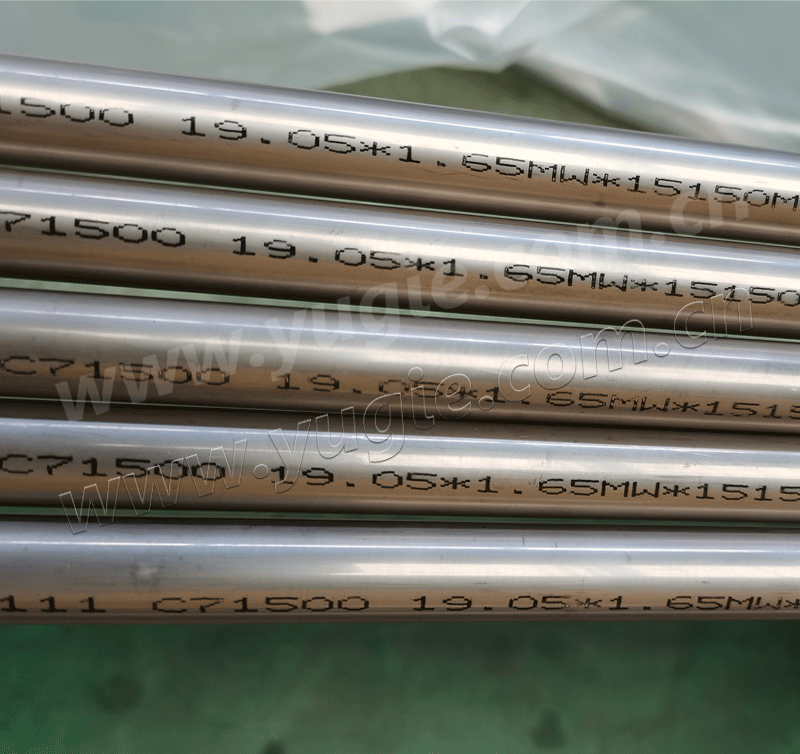

Copper Nickel Tube Symbol:
| Grade | USA | UK | Germany | Japan | ||
| China GB | UNS | EN | DIN | No | JIS | |
| BFe 30-1-1 | C71500 | CuNi30Mn1Fe | CW354H | CuNi30Mn1Fe | 2.8820 | C7150 |
Chemical Composition:
| Standard | Chemical Composition | ||||||||||||||
| Cn | Sn | Al | As | Ni | Fe | Mn | Pb | B | P | Si | S | C | Zn | Other | |
| C71500 | Rem | 29.0-33.0 | 0.4-1.0 | 1.0 Max | 0.05Max | 1.0Max | |||||||||

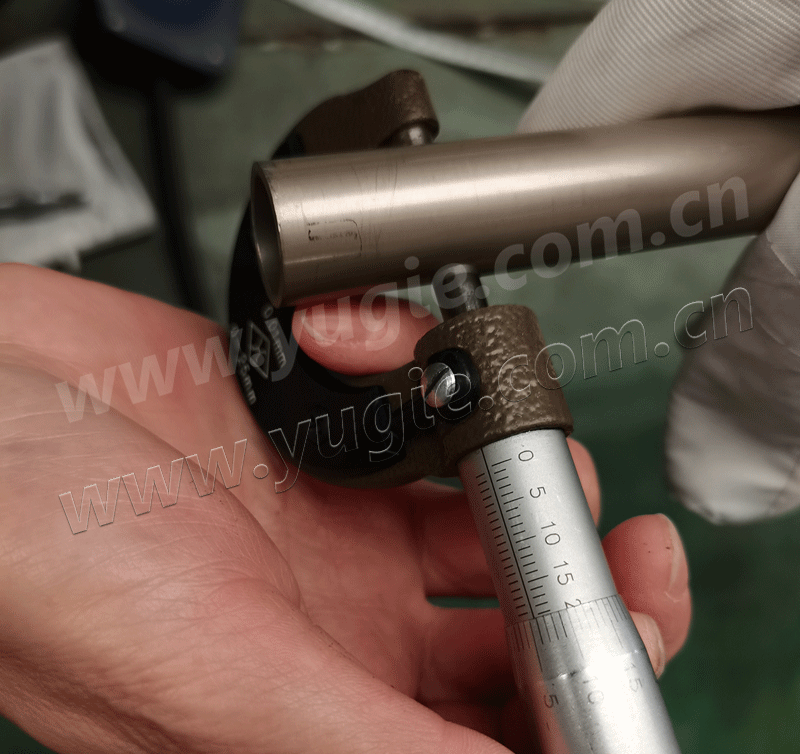

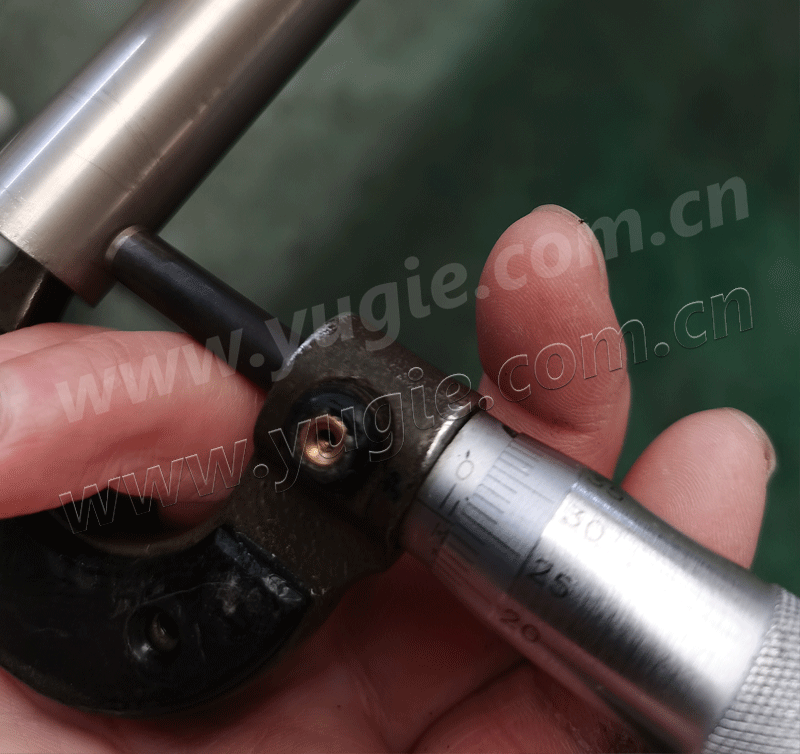

Dimensions:
Outer diameter: 5-350mm
Wall thickness: 0.5-50mm according to the buyers' requirements
Standard: EEMUA 144, ASTM B466, GB/T 26291 etc.
Application: Copper-Nickel Alloy tube widely used for condenser and heat ex-changers, Water Evaporators, Boiler Blow down Heat Ex-changers, air coolers, Gland Steam Condensers, Steam Ejector, Turbine Oil Coolers, Fuel Oil Heaters, Compressed Air Inter and After Coolers, Ferrules, Oil Well Pump Liner, and Distiller etc.
