"G" Fin Tube

Share

Application: Mainly used in petrochemical, electric power, paper, tobacco, building heating and other industries such as air cooler, air heater and food industry plant protein powder, starch and other spray drying system of air heaters. The maximum working temperature is 400°C.

It use of advanced production equipment by Mcelroy companies in the United States, slotting embedding technology is advanced, from stable, embedded and firm, pulled off force not less than 70 n, the allowable temperature can reach 400 ℃, has the strong ability of temperature resistance and thermal shock, widely used in petrochemical air cooler.Small oil gun (plasma) micro oil ignition warm wind is cold boiler ignition hot air heating equipment in the ball mill coal pulverizing system.
(1)Features: High heating efficiency and heating up fast, small volume, small wind resistance, installation is convenient wait for a characteristic, can be installed in a wind pipe and the by-pass pipe.

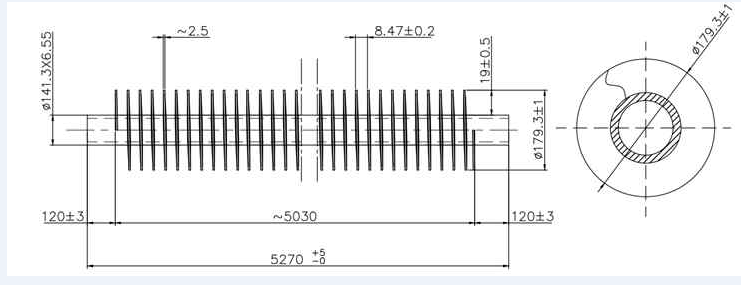

(2) Normally the simple structure is like this:

TYPE NAME BARE TUBE
MATERIAL
FIN TUBE
MATERIAL
BARE TUBE
DIAMETER(MM)
FIN SPECIFICATION(MM)
FIN
PITCH
FIN
HEIGHT
FIN
THICK
EMBEDDEDG-TYPE
FIN TUBE
CARBON STEEL COPPER,STAINLESS STEEL,ALLOYALUMINUM16-632.1-5‹17~0.4


"G" Fin Tube
