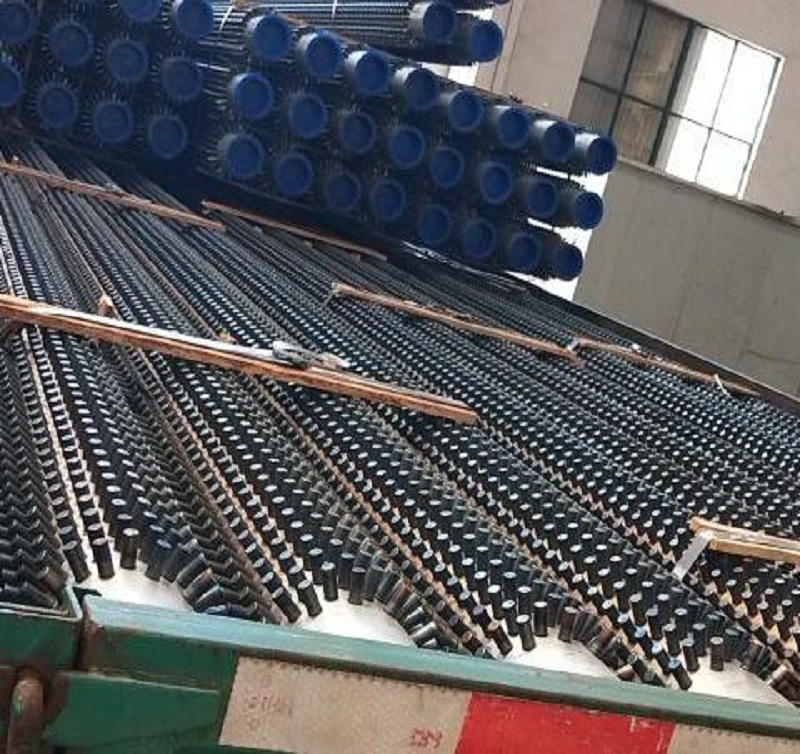

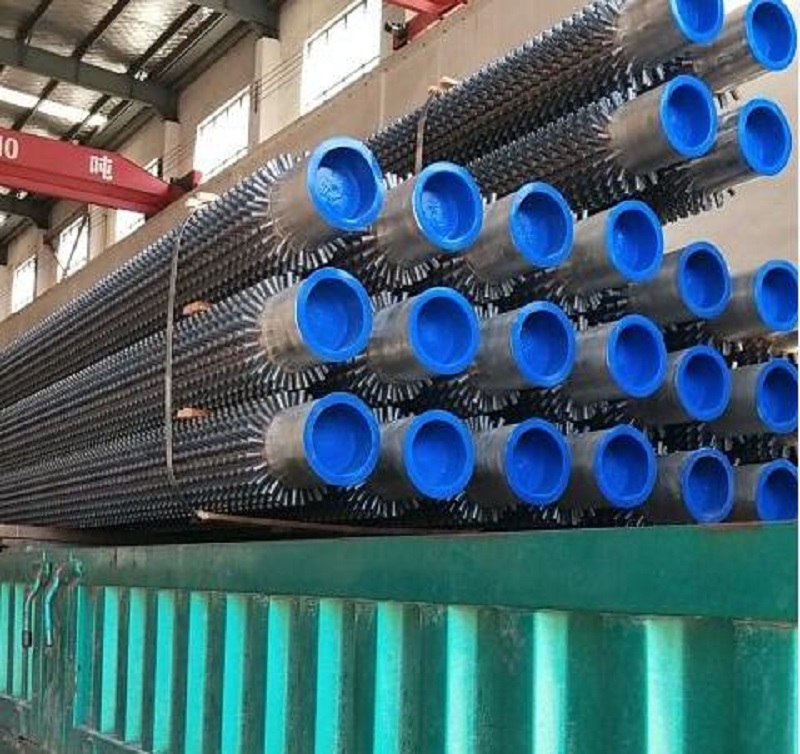

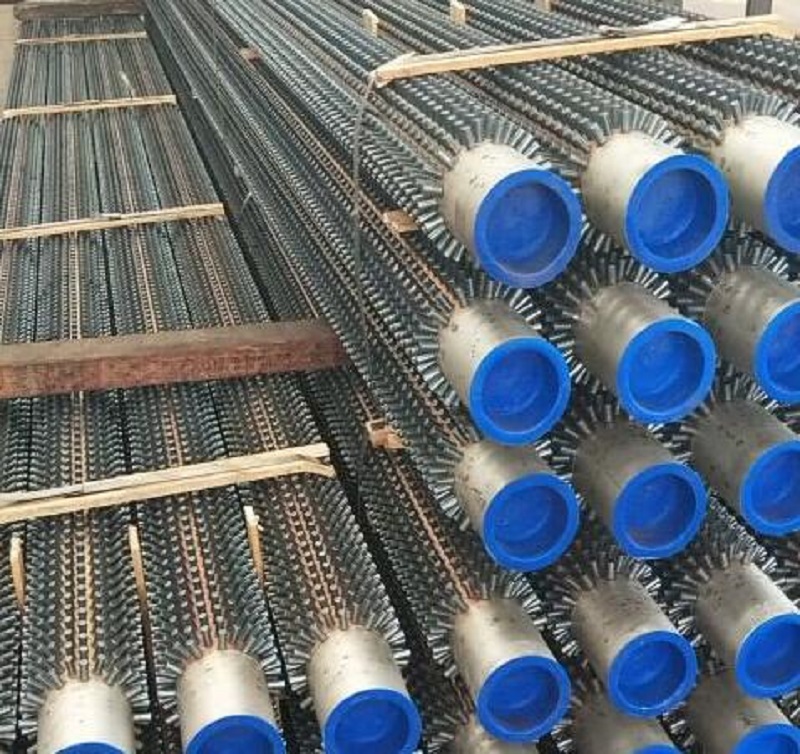

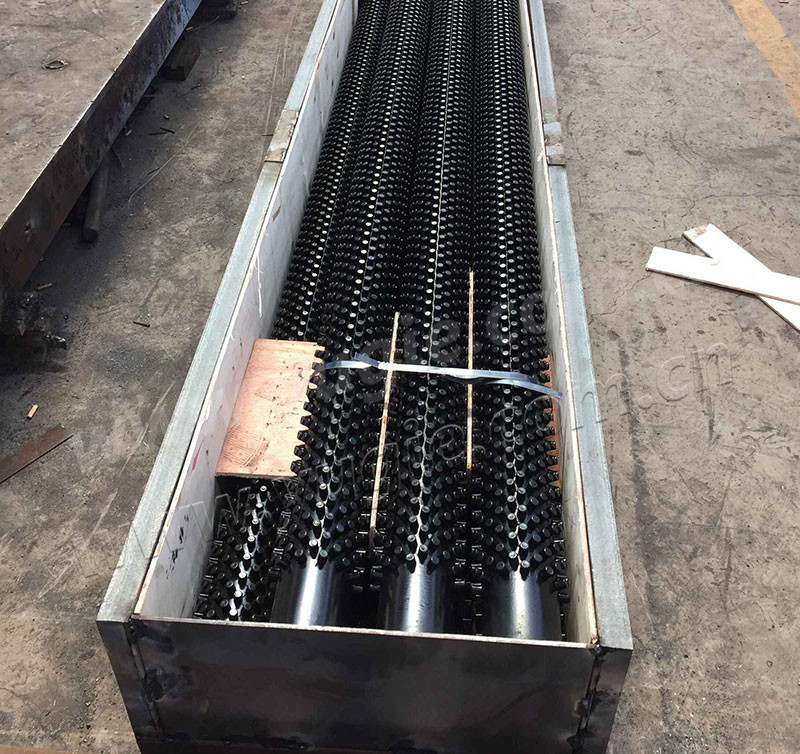

Applications: Stud Fin Tube equipment by resistance welding the welding, the welding process is controlled by PLC program, and the indexing feed motor uses brake motor and the man-machine interface can set the stud number, indexing parameters and compensation coefficient, set according to technical requirements to ensure product quality and accuracy. Petrochemical industry application stud fin tube heating furnace convection chamber, can improve the heat transfer coefficient of flue gas side, stud fin tube area is 2 ~ 3 times of the base pipe, and so in the design of the application of nail head tube under the condition of reasonable and heat radiation of the same intensity can be obtained.
Stud Fin Tube equipment by resistance welding the welding, the welding process is controlled by PLC program, and the indexing feed motor uses brake motor and the man-machine interface can set the stud number.
Features: indexing parameters and compensation coefficient, set according to technical requirements to ensure product quality and accuracy. Petrochemical industry application stud fin tube heating furnace convection chamber, can improve the heat transfer.
Size and Materials:
| TYPE | NAME | BARE TUBE MATERIAL | FIN TUBE MATERIAL | BARE TUBE DIAMETER(MM) | FIN SPECIFICATION(MM) | ||
| FIN PITCH | FIN HEIGHT | FIN THICK | |||||
| WELDING | STUDED FIN TUBE | CARBON STEEL,ALLOY,STAINLESS STEEL | CARBON STEEL,ALLOY,STAINLESS STEEL | 25-219 | 8-30 | 5-35 | θ5-20 |
