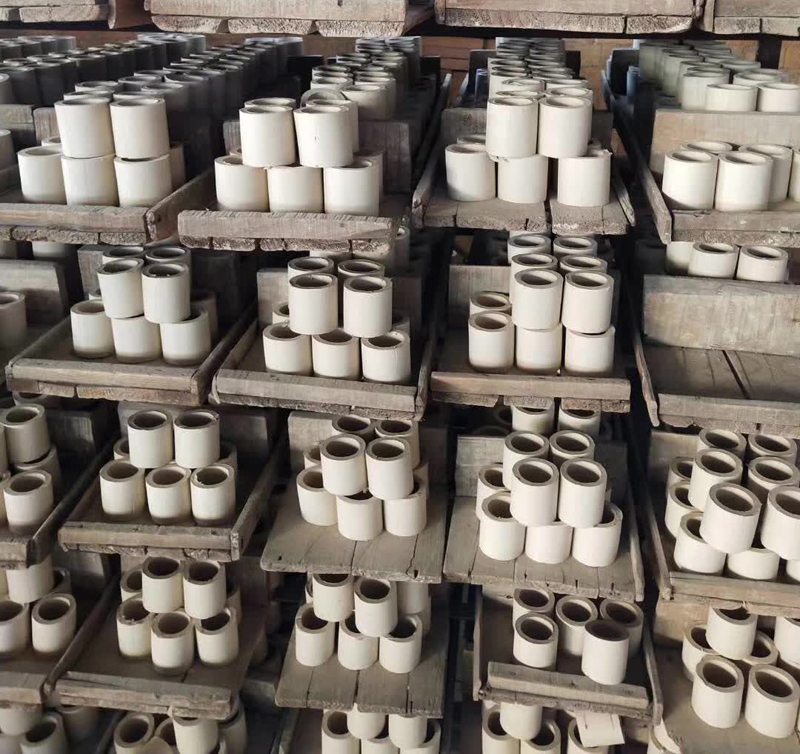

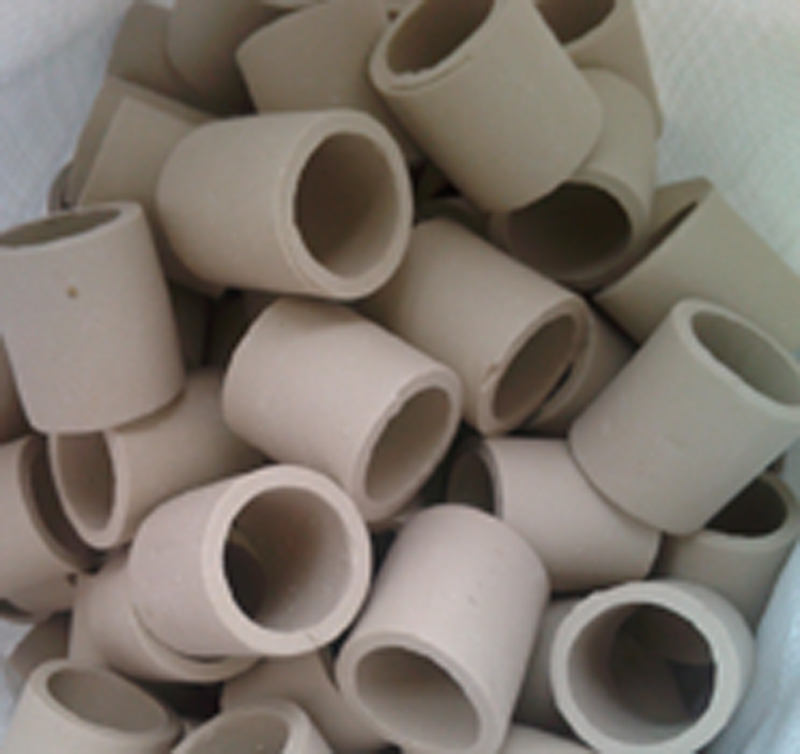

Ceramic Raschig Ring

Share

Ceramic Raschig Ring is common regular packing that they are still used for refilling existing columns and other applications. Its surface ratio is higher than ceramic cylinders and balls by 30% and its ring shape has high mechanical stability.

Ceramic Raschig ring is the first development of a random packing. Simple shape, it is the same height and diameter of the ring. Raschig rings large size (≥100mm) are structurally packed in the column, for small size<100mm below the Raschig rings and more filled with heaps way. Ceramic Raschig Rings with excellent acid resistant properties, the ability of reisting various inorganic acid, organic acids and organic solvents corrosion(except HF acid), high temperature in a variety of occasions, wide range of applications, can be used for chemical industry, metallurgy, gas and environmental protection industries in the drying tower, absorption tower, cooling tower, scrubber, regeneration tower.

Specification of Cermic Raschig Ring:

Diameter

(mm)

Size (mm)

Surface Area

 (m2/m3)

Void (%)

Number

 (pcs/m3)

66×6×1.0700572640000
88×8×1.5490621210000
1010x10x240067750000
2020×20×2.52307096000
2525×25×3.02007142000
5050×50×2.5105735200
7676×76×3.080742260
100100×100×8.066761000
150150×150×15.04070283
