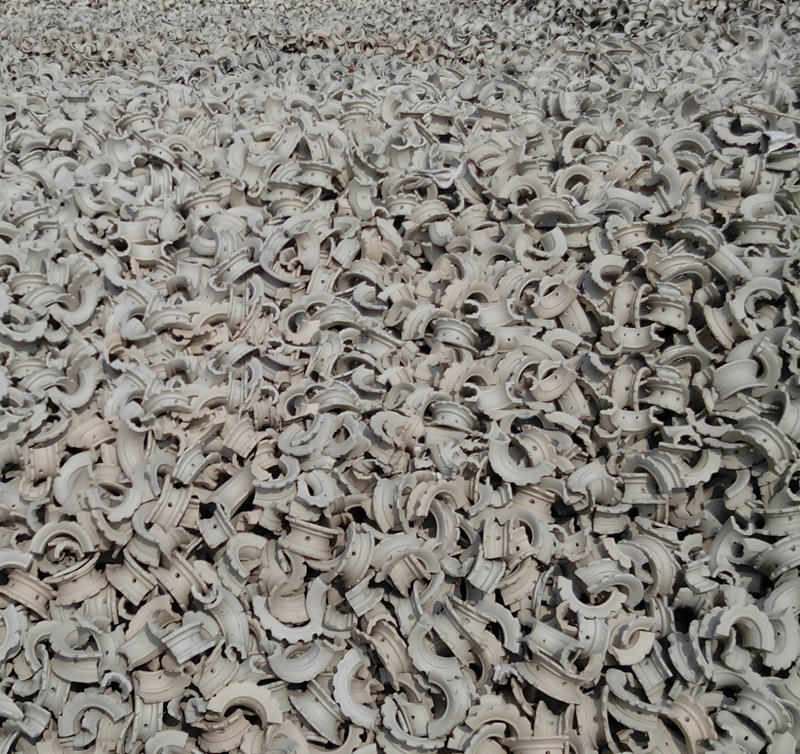

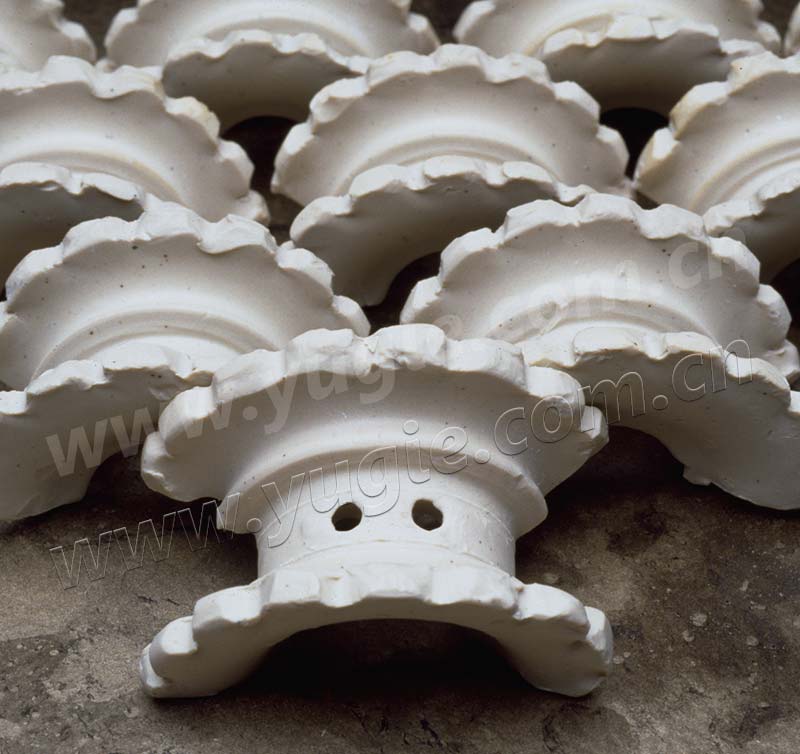

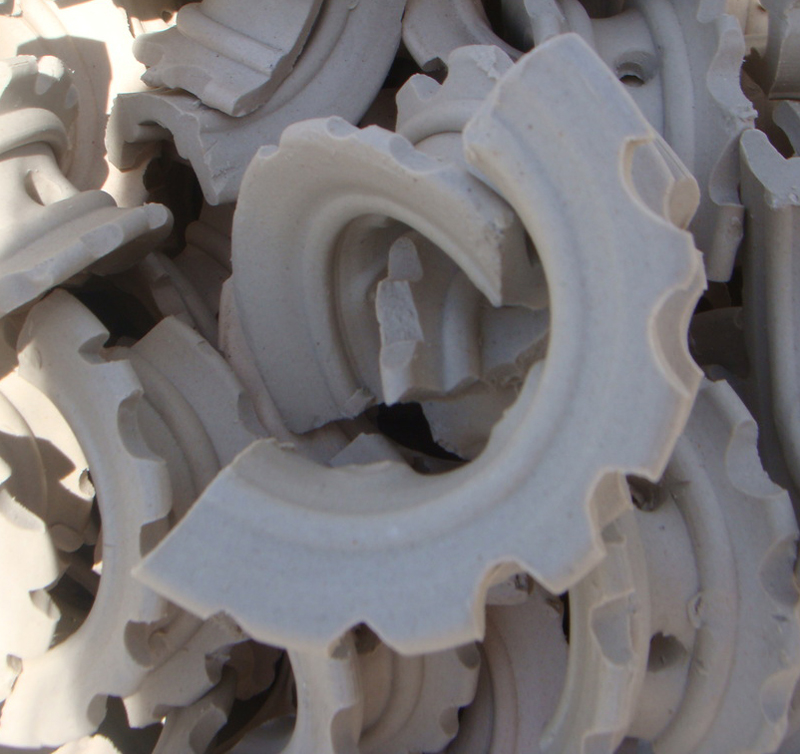

Ceramic Super Saddles(equivalent to Koch-Glitsch SUPER INTALOX SADDLES) are the most frequently used high-performance packing which exhibit advantages for most applications in comparison with other packing of different shapes. Ceramic super saddles' smooth surface imparts a high chemical resistance and provides them with a high level of stability. Due to their simple form, Ceramic Super saddles can be produced at a relatively low cost.
Applications: Ceramic Super Saddles(equivalent to Koch-Glitsch SUPER INTALOX SADDLES) are widely used as Regenerative Thermal oxidizers, Acid Gas Scrubbers, Dryer Towers, Tail Gas Scrubbers and Impasse Towers.
Specification:
Diameter (mm) | Size (mm) | Surface Area (m2/m3) | Void (%) | Weight KG/M3 | Number (pcs/m3) | Dry packing (factor m-1) |
| 25 | 25x19x3.0 | 160 | 78 | 530 | 52000 | 337 |
| 38 | 38x30x4.0 | 102 | 80 | 480 | 16000 | 199 |
| 50 | 50x40x5.0 | 88 | 81 | 450 | 7300 | 166 |
| 76 | 76x57x9.0 | 58 | 82 | 430 | 1600 | 105 |
