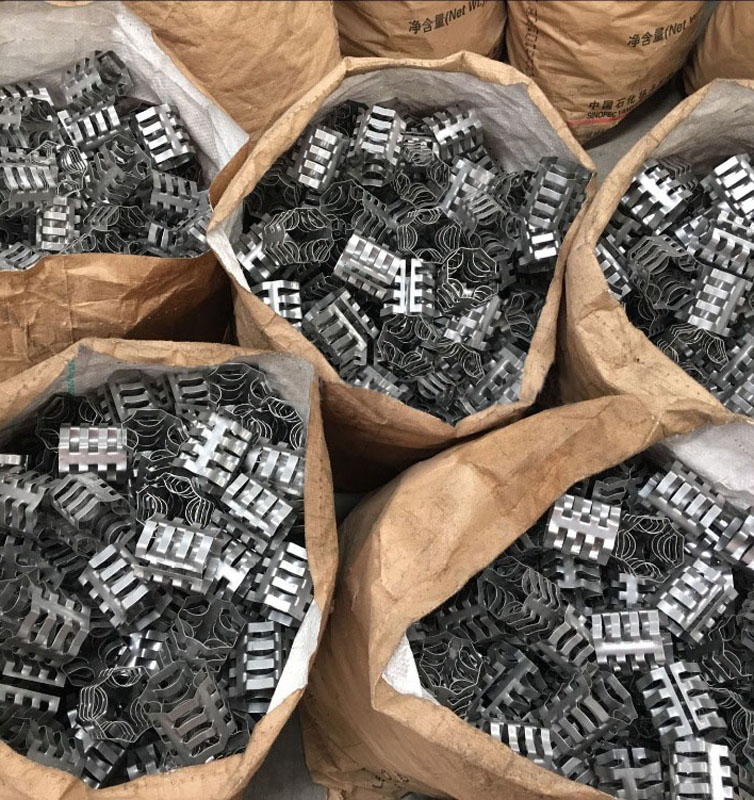

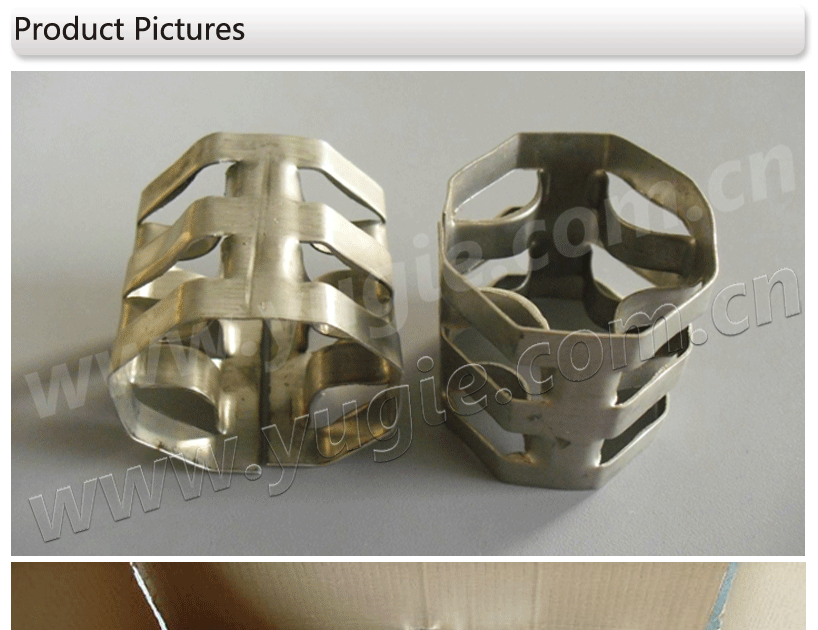

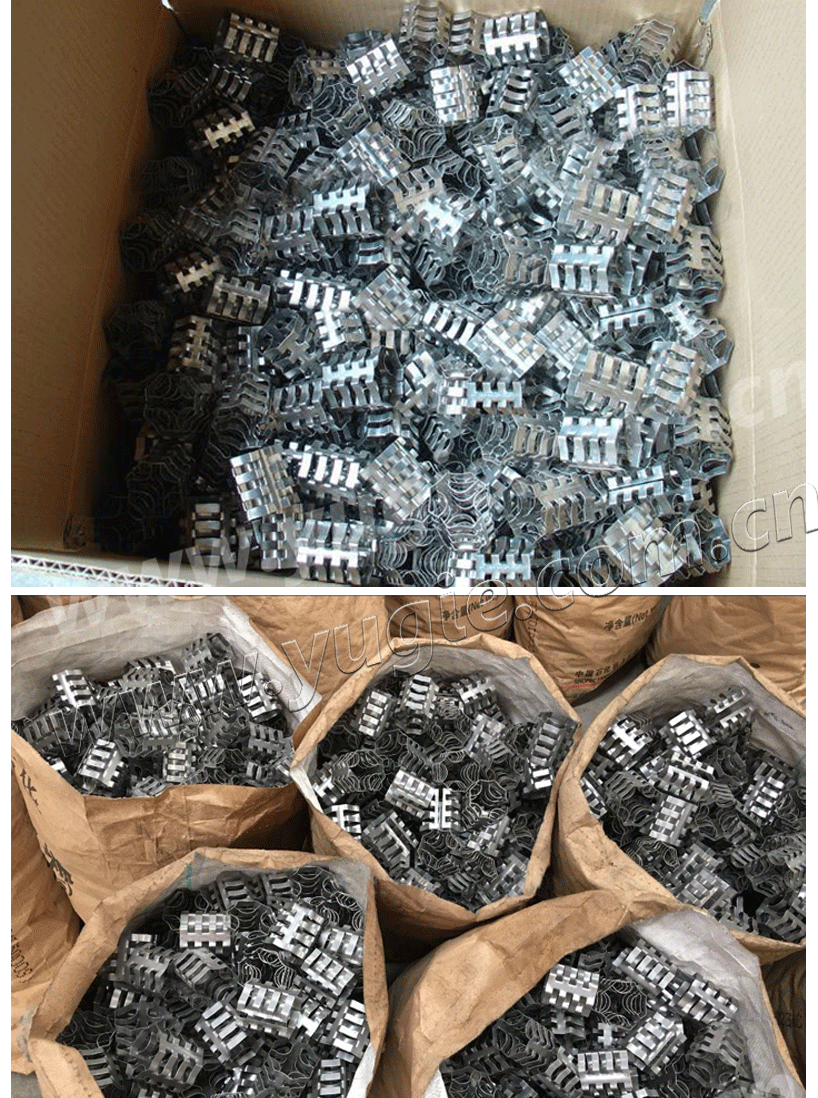

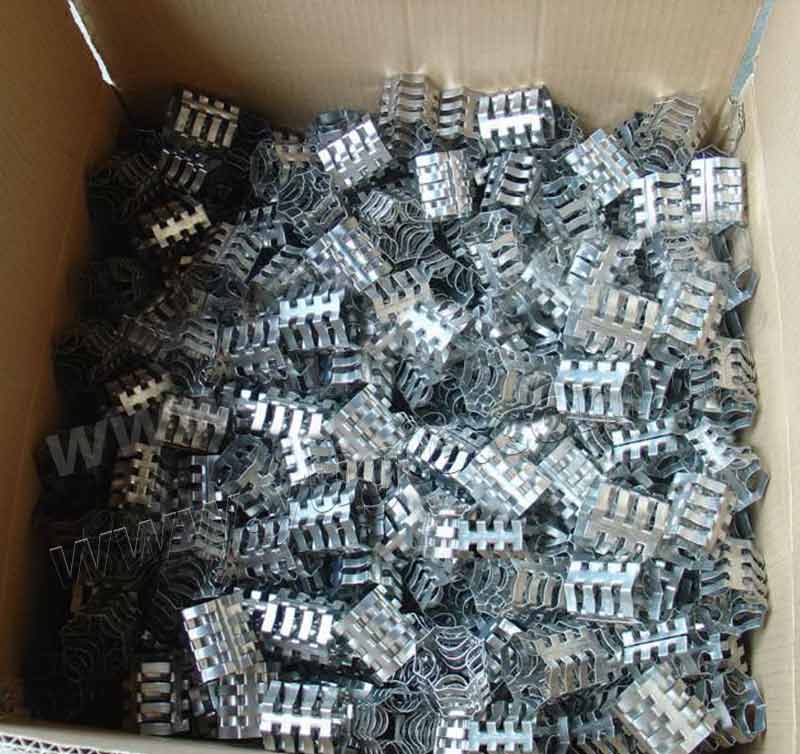

Metal VSP Rings

Share

VSP Rings have reasonable Geometric symmetry, good structural uniformity and High porosity. The surface of the packing tower is continuous and not disconnecting, evenly distributed in space. Compared with Pall Ring, its flux can increase 15-30 percent, and the pressure can reduce 20-30 percent.

During plant operation Metal VSP Rings create gas/liquid contact on easily wettable surfaces and promote the formation of droplets as the liquid cascades down the packed bed. This ensures good liquid mixing and consistent and uniform distribution. This open non-nesting structure creates high efficiency and a very low pressure drop.

Specification:

Diameter

(mm)

H x T

(mm)

Number

Per M3

Surface

(M2/M3)

Weight

(Kgs/M3)

Free Vol(%)

Dry packing

 factor(m-1)

Φ 2525*0.5592002504200.93310
Φ 3838*0.6140001382960.947163
Φ 5050*0.870001213500.95144
Φ 7676*1.01950752800.9586
Metal VSP RingsMetal VSP RingsMetal VSP RingsMetal VSP Rings
