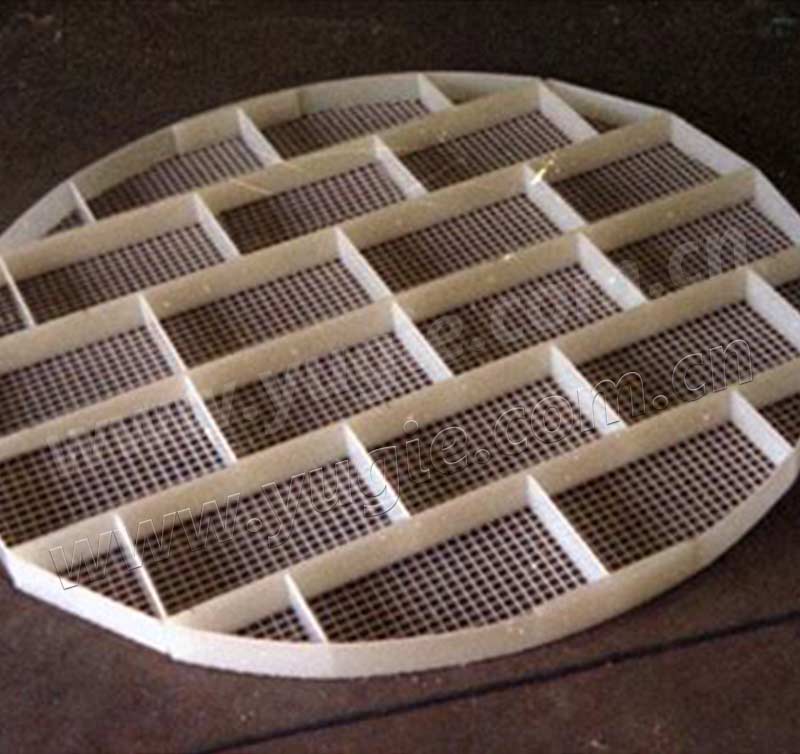

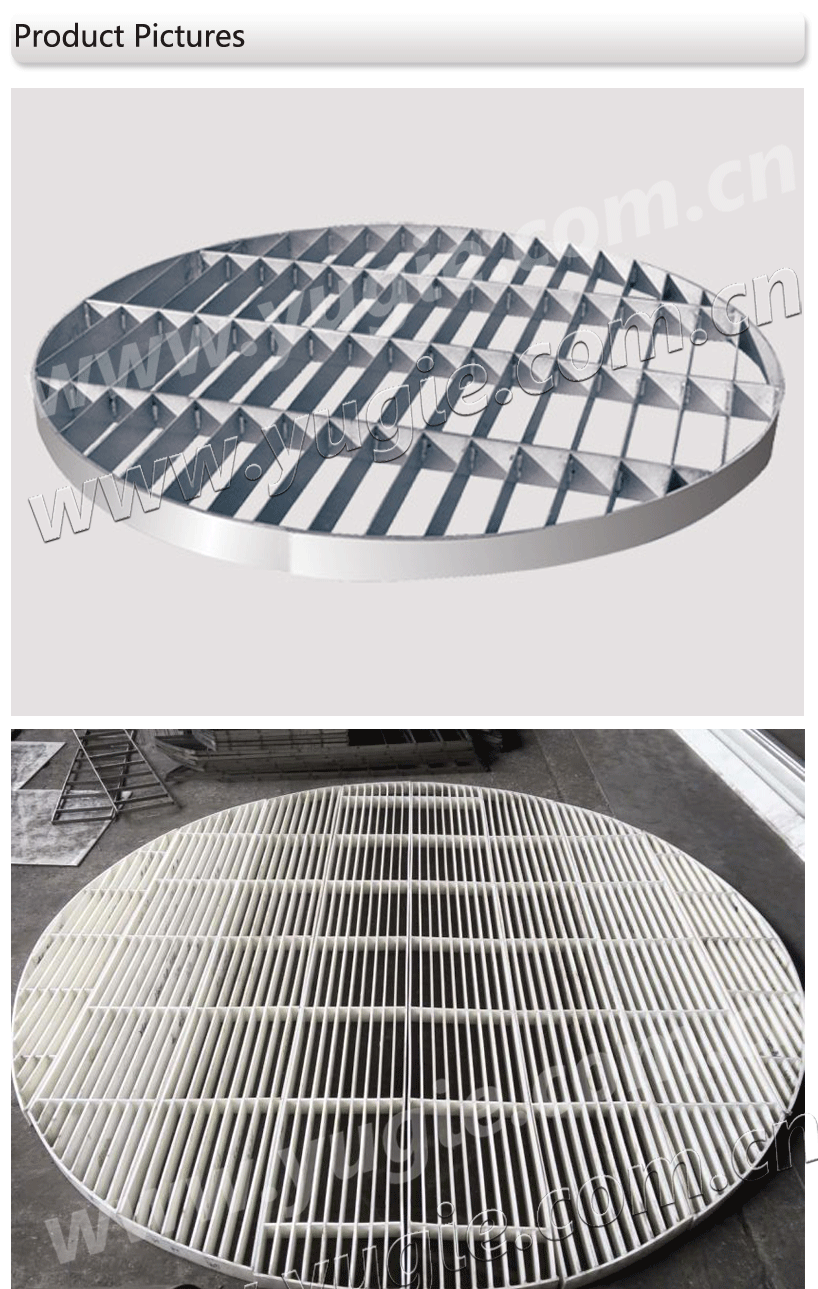

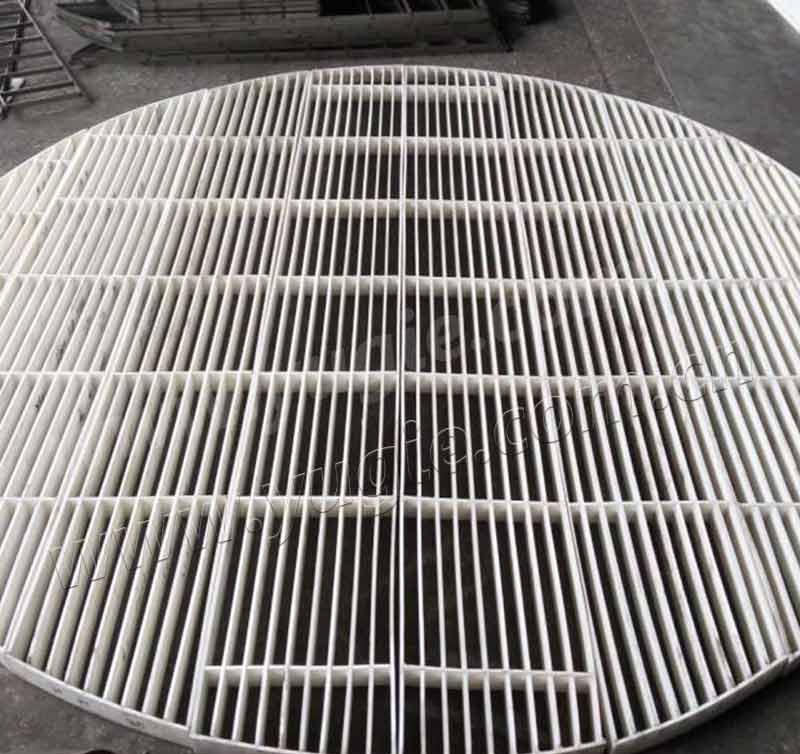

Packing Support Grating Grid

Share

Types of packing support grid:


Packing support grating plate. It is designed for structured packing and some random packing in sulfuric acid absorption tower, drying tower and cooling tower.

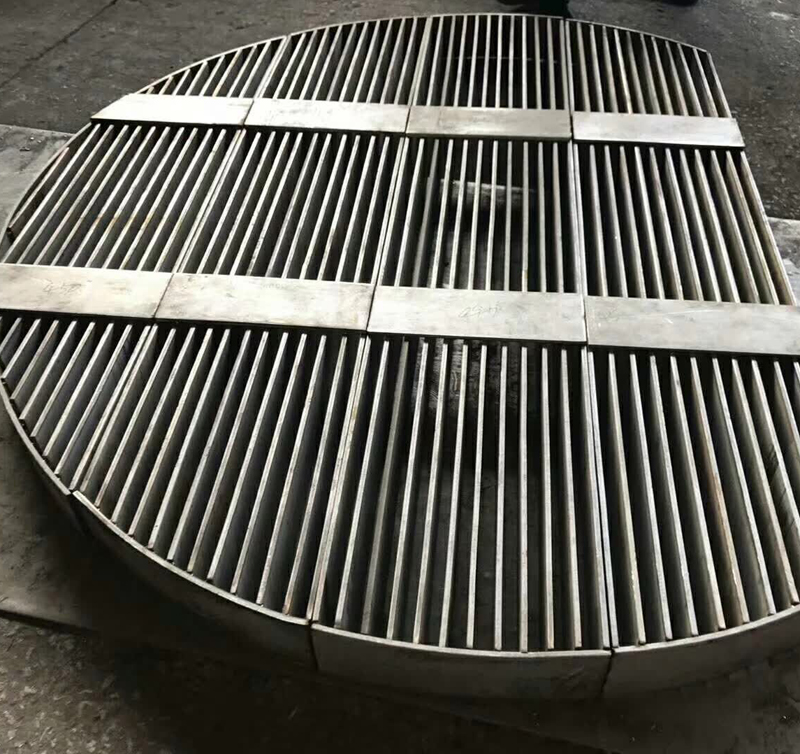

Reinforced bar added. Reinforced bars are added onto the bottom and top of the grating plate to increase the stiffness and strength.

Suit structured and random packing. The grating plate design can not only support structured packing, but also the cross ring random packing.

Welded onto tower wall or supporting ring/plate. No matter the small diameter or large diameter packing support grating plates are welded onto tower wall or supporting ring/plate on the tower wall for rigid and firm structure.

Packing Support Grating Grid

Packing Support Grating GridPacking Support Grating GridPacking Support Grating Grid
