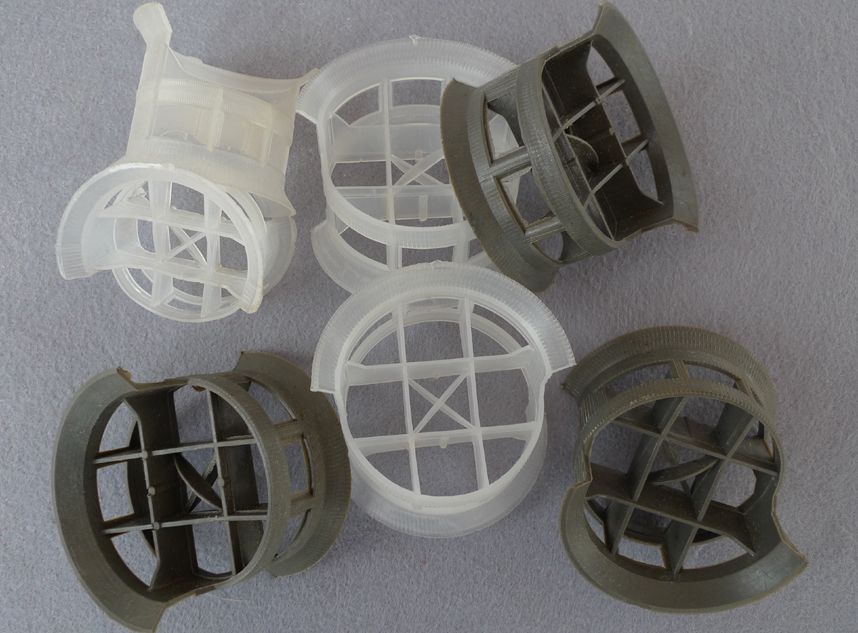

Plastic Conjugate Ring Packing is made from heat resistant and chemical corrosion resistant plastics. It has features such as high free volume, low pressure drop, low mass-transfer unit height, high flooding point, uniform gas-liquid contact, small specific gravity, high mass transfer efficiency and so on, and the application temperature in media ranges from 60 Degree C to 150 Degree C. For these reasons it is widely used in the packing towers in petroleum industry, chemical industry, alkali-Chloride industry, coal gas industry and environmental protection, etc.
Material: Polypropylene(PP), Reinforced Polypropylene(RPP), Reinforced Nylon 6, Reinforced Nylon 66…
Specification:
Diameter (mm) | Size (mm) | Surface Area (m2/m3) | Void Rate (m3/m3) | Number Per M3 |
| 25 | 25x25x1.2 | 185 | 0.90 | 74000 |
| 38 | 38x38x1.5 | 142 | 0.91 | 16000 |
| 50 | 50x50x1.5 | 104 | 0.92 | 9500 |
| 76 | 76x76x3.6 | 81 | 0.93 | 3900 |
