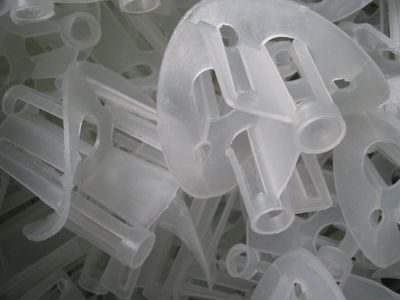

Plastic Heilex Ring is a new kind of open-celled packing. Heilex ring has unique configuration, and usually made by PP injection. Plastic heilex ring enlarges its surface area and void space which contribute a lot to enhance the product performance. And heilex ring won’t nest, and the gas-liquid could be well distributed. We can provide heilex rings in a variety of plastic, such as PP, Polypropylene, PVC, PVDF, HDPE and Glass Filled Polypropylene etc. Plastic Heilex Ring mainly applied to gas absorption, acid gas absorption, cooling and gas purification, etc.
Advantages: High void ratio, low pressure drop
Material: Polypropylene(PP), Reinforced Polypropylene(RPP), Reinforced Nylon 6, Reinforced Nylon 66…
Specification:
Diameter (mm) | Size (mm) | Surface Area (m2/m3) | Void Rate (m3/m3) | Weight Kg/M3 | Number PCE/M3 | Dry Packing Factor (m-1) |
| Ф50 | 50×50×1.5 | 107 | 0.93 | 63 | 8200 | 128 |
| Ф76 | 76×76×1.8 | 75 | 0.94 | 54 | 3200 | 87 |
| Ф100 | 100×100×2.0 | 55 | 0.95 | 45 | 1450 | 62 |
