Plastic Super Saddle Ring

Inquire Now Next Product

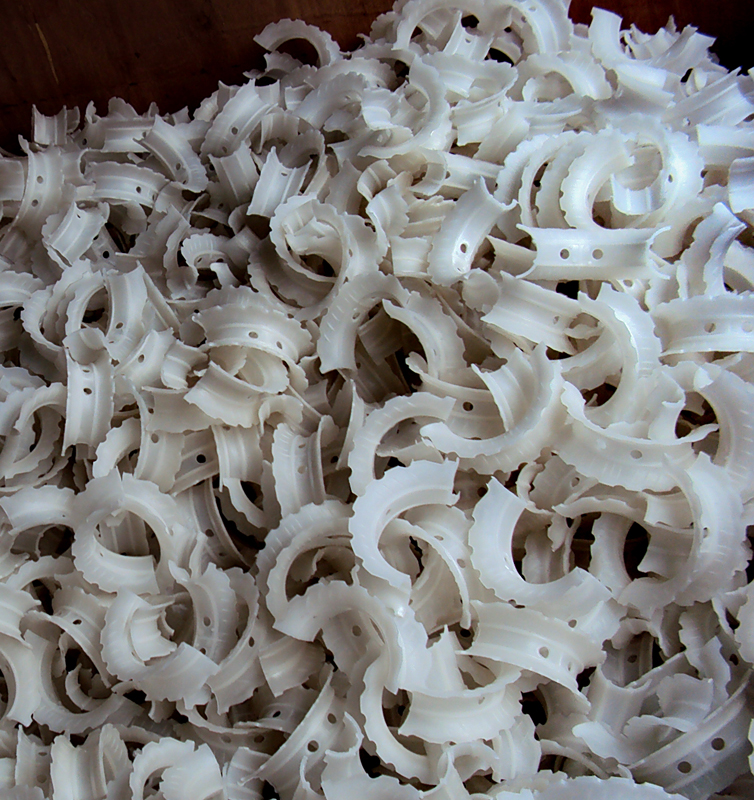

Plastic Super Saddle Ring (Equivalent to Koch-Glitsch SUPER INTALOX) are a versatile and economical industry standard with well-known performance characteristics. Low pressure drop, high flux, high efficiency , easy to handle.

Material: Polypropylene(PP), Reinforced Polypropylene(RPP), Reinforced Nylon 6, Reinforced Nylon 66…

Applications:

Absorption, scrubbing, and stripping services

Pulp and paper service, such as bleach plant absorbers

Versatile alternative to ceramic saddles

Performance:

Good Capacity and Low Pressure Drop.

Higher capacity and lower pressure drop than ceramic saddles.

Multiple sizes provide ability to optimize capacity and efficiency based on application requirements.

Higher Liquid Hold-up and Residence Time.

Relatively high liquid hold-up allows good absorption efficiency with slow chemical reaction.

Versatile Standard Packing.

Lower sensitivity to liquid and vapor distribution quality allows use with conventional liquid distributors.

Specification:

Plastic Super Saddle Ring

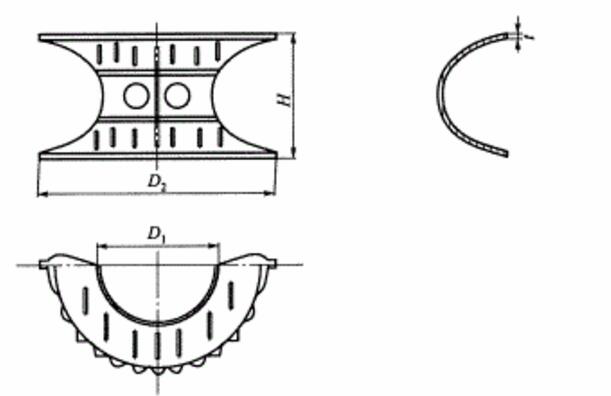

Diameter (mm)	Size (mm) D1x D2 x H x t	Surface Area (m2/m3)	Void Rate (m3/m3)	Number PCE/M3	Weight Kg/M3	Dry Packing Factor (m-1)
25	25×38x19x1.2	207	0.90	55000	81	284
38	38×60x30x1.2	140	0.92	17000	72	180
50	50x80x40x1.5	108	0.93	6700	60	134
76	76x114x57x2.5	89	0.94	1500	52	107
