Super Mini Rings

Share

The height-to-diameter ratio of the Super Mini Rings without ladder central flanging is 0.2-0.4. The strength of the packing is improved by the inner arc ring which arrange orderly when randomly heaped. The Super Mini Rings are of reasonable great structure, low pressure drop, ameliorative processing capacity and excellent mass transfer performance.

Advantages: Large flux, low pressure drop, high mass transfer efficiency, large elasticity of operation, low pressure drop, great separating, effective cold and heat resistance, longer lifetime.

Applications: Various separation, absorption and desorption equipment, normal atmospheric pressure reduced and vacuum distillation plant and desulfuration systems, ethyl benzene separation, and Iso-octane/toluene systems.

Specification:

DIA(mm)

D×H×T

(mm)

Surface Area

(m2/m3)

Void Rate

(%)

Number

Per M3

Weight

(Kg/M3)

Dry packing

factor(m-1)

1616×5.5×0.534892.3630000604312
2525×9.0×0.522893.6160000506280
3838×13×0.71509548000390175
5050×17×0.812096.521500275156
7575×25×2.57097.5580026490.2

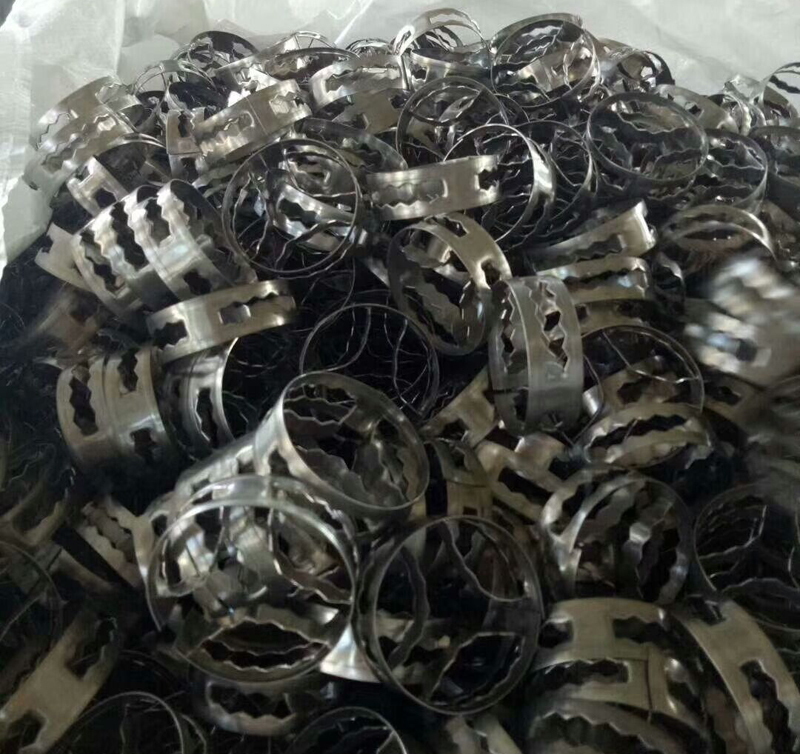

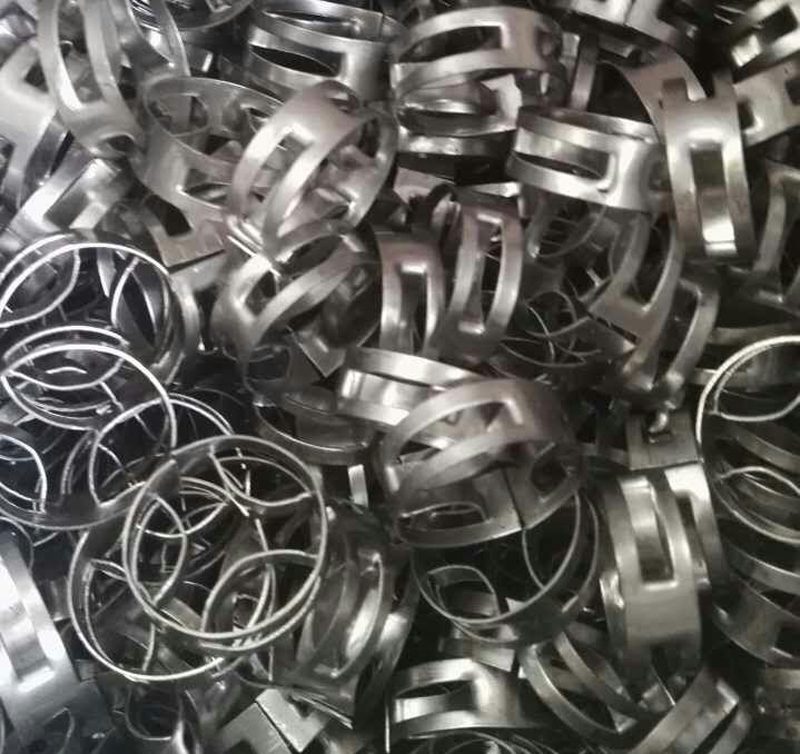

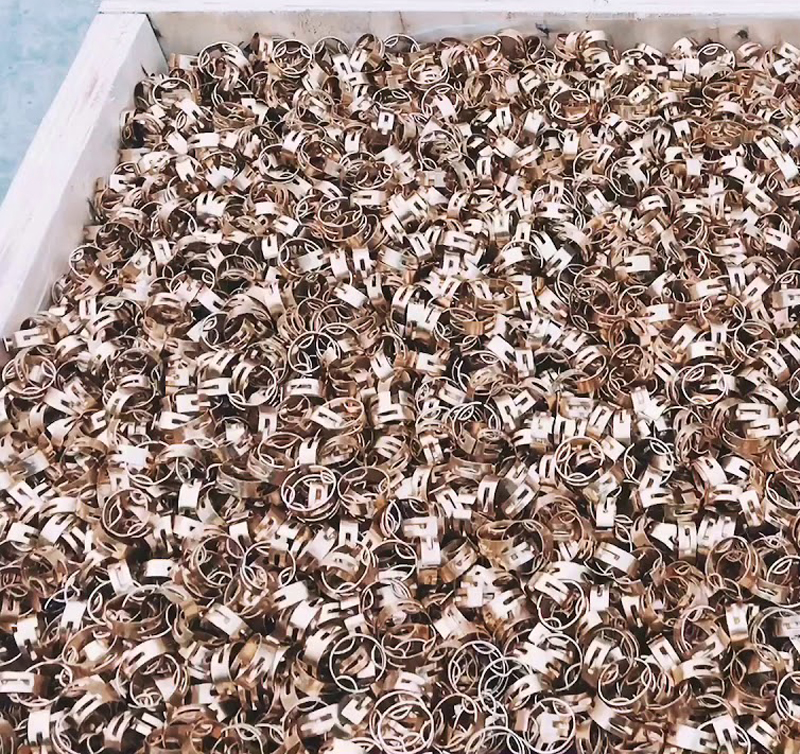

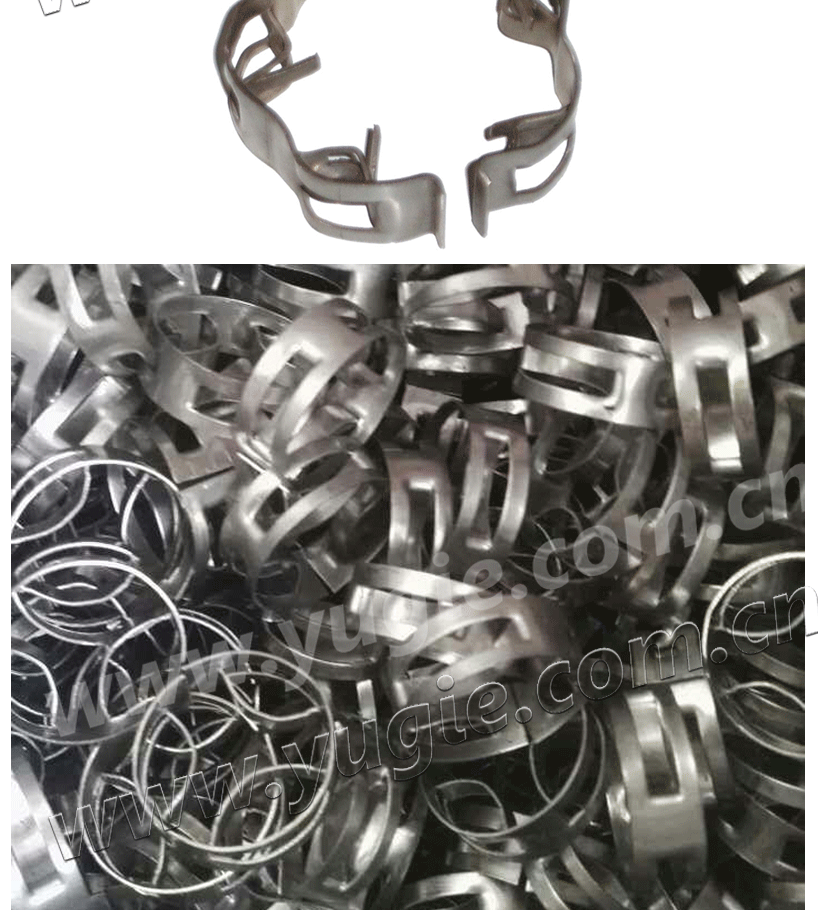

Super Mini RingsSuper Mini RingsSuper Mini RingsSuper Mini Rings
