2000 Series Aluminum Tubes and Pipes

Share

Production Description:

items

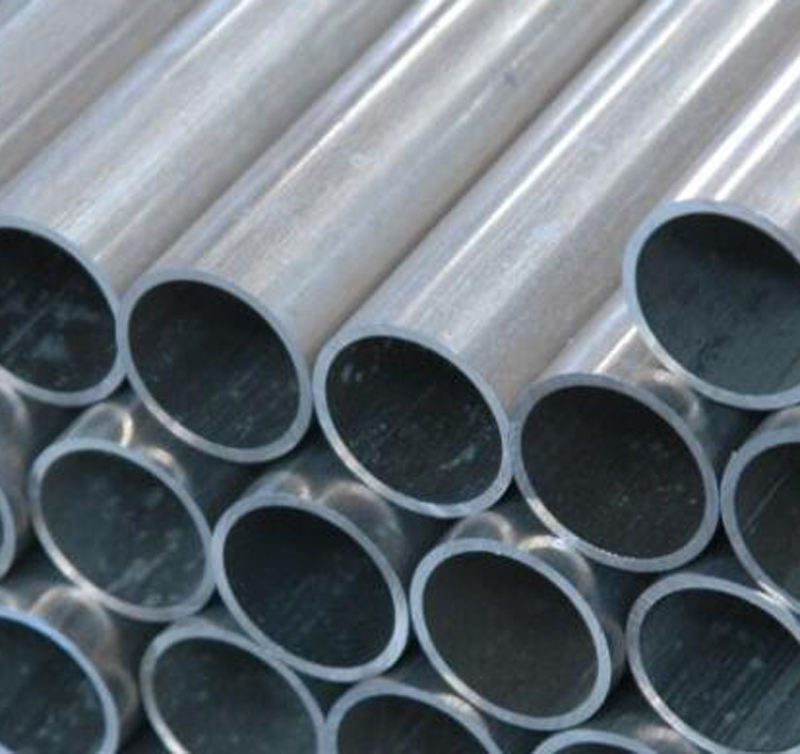

2000 Series 2017 2 inch Seamless Aluminum Tube

Surface treatment

Mill finish, anodized, etc

Material

2A01,2A02,2A04,2A06,2A10,2A11,2B11,2A12,
2A13,2A14,2A16,2B16,2A17,2A20,2A21,2A25,

2A49,2A50,2A70,2A80 and other series

Quality

GB/T6893-2000,GB/T4437-2000, ASTM B241,JIS H4080-2006

Status

T4 T5 T6 or other special status

Packing

Protective film +plastic film or EPE +Kraft paper

Length

Powder coating 6.5meters, anodizing 6.5 meters, mill finish 12 meters

Press Machine

500-4000 tons all together 64 press lines

Molding

1. Using our moulds, no fee;
2. Using customer drawing, opening mould,
usually about 5 tons the molding fee is free;

Application

2017 aluminum alloy is the first to obtain industrial applications 2XXX alloy,
the current narrow range of applications, mainly for rivets,
general mechanical parts, structural and transport tool structures,
propellers and accessories;


Chemical Composition

Grade

Si

Fe

Cu

Mn

Mg

Cr

Ni

Zn

Ti

Zr

Al

2017

0.2-0.8

0.7

3.5-4.5

0.4-1.0

0.4-0.8

0.1

0.25

0.15

Balance


Mechanical Properties

Grade

Temper

Wall Thickness(mm)

Tensile Strength(Mpa)

Yield strength(Mpa)

Elongation(%)



2017

O

All

≥245

≥130

≥12

H112

≤18

≥395

≥260

≥12

18

≥395

≥260

2024 Extruded Aluminum Tubing

2024 aluminum alloy is a kind of high-strength hard-aluminum, heat treatment can be strengthened in the quenched and just quenched state medium plastic, good spot welding, with gas welding tend to form intergranular cracks, the alloy hardened and cold hardened Machinability is good, low machinability after annealing: corrosion resistance is not high, often using anodizing and painting methods or coated aluminum surface to increase its anti-corrosion ability



Chemical Composition
GradeSiFeCuMnMgCrNiZnTiZrAl
20240.50.53.8-4.90.3-0.91.2-1.80.10/0.250.15/Balance

Mechanical Properties
GradeThicknessTensile  Strength Yield StrengthElongation (%)
20240.63-1.244029012

Due to its high strength and fatigue strength, 2024 aluminum alloy is widely used in aircraft structures (skin, skeleton, rib, bulkhead, etc.), rivets, missile structures, propeller elements and various other structures.
