Ceramic Ball

Share

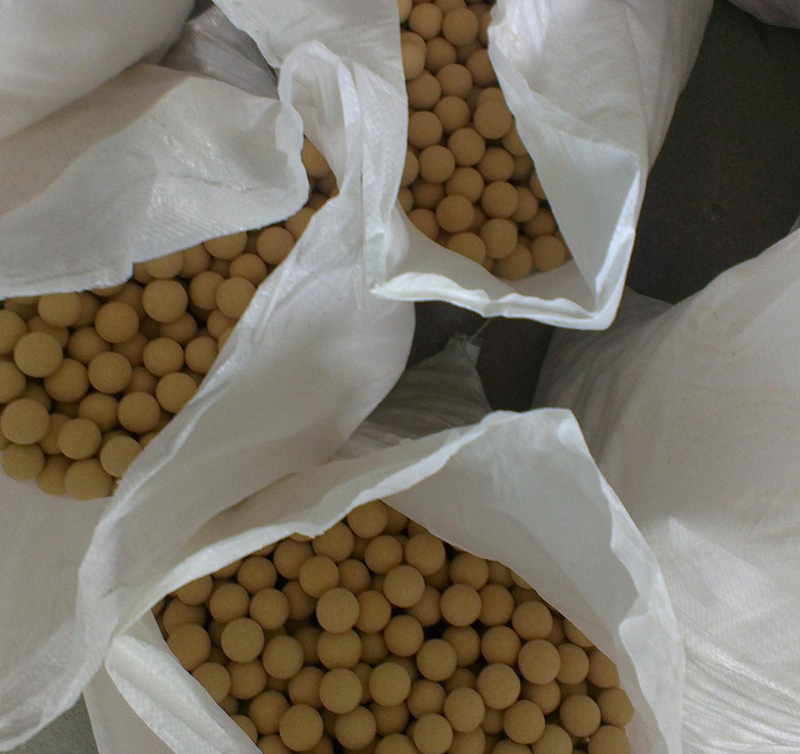

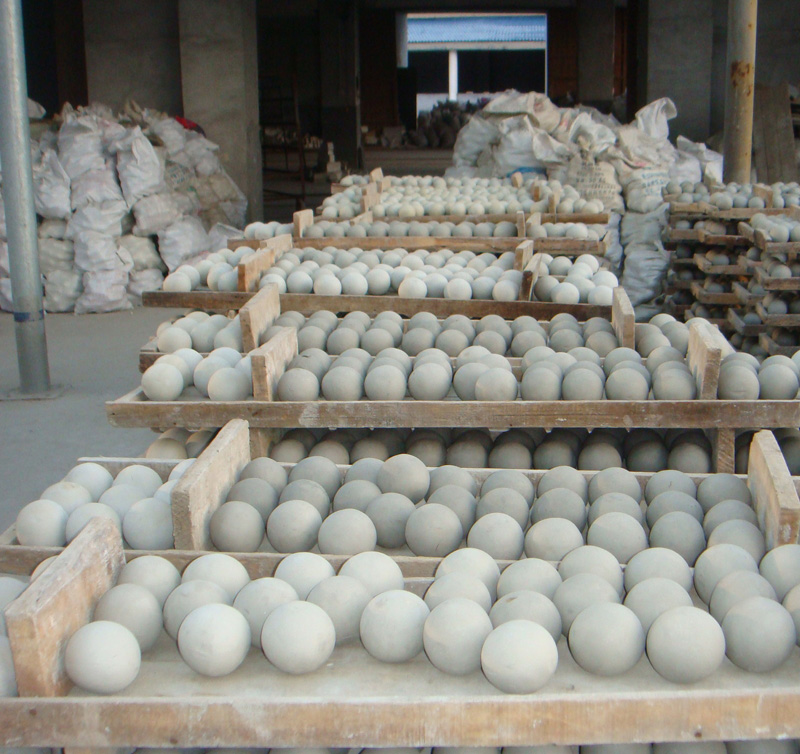

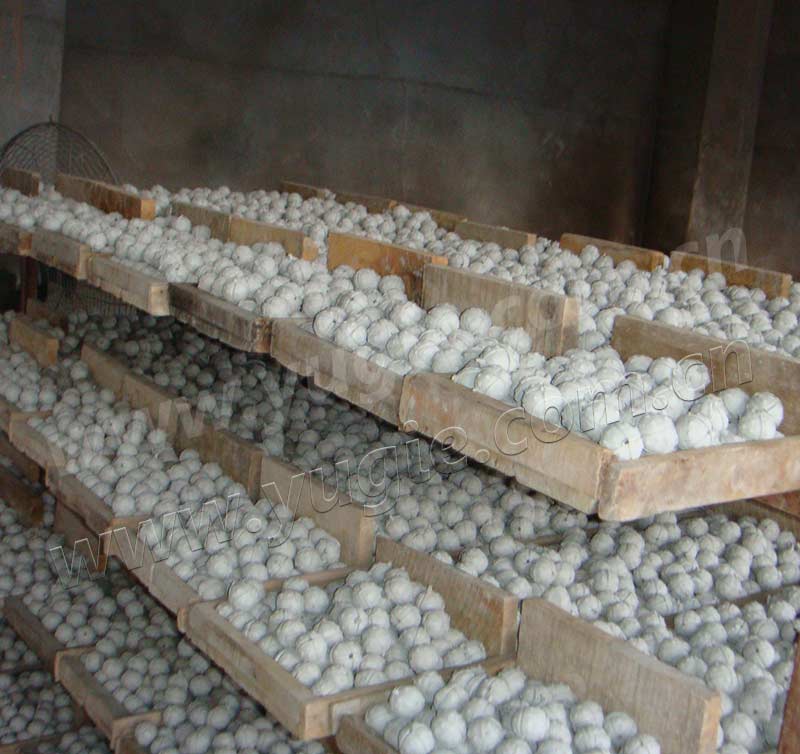

Produces two standard types of Catalyst Bed Support Media, i.e. the ceramic inert balls and the alumina inert balls.

The ceramic inert balls are widely used in many different applications. The main components of the raw material of the are SiO2<80%, Al2O3+SiO2 >93%. The predominant qualities of the catalyst bed support media are its low pressure drop, excellent compressive strength and good resistance to thermal shock.

Inert Alumina Ball(Al2O3>99%) spheres are characterized by their low silica content (SiO2 < 0.2%). The high degree of purity (Al2O3 > 99%) and strength make the product ideal for high temperature and steam applications where leached silica can coat downstream equipment or foul or poison the catalyst bed. The excellent thermal properties combined with its high density and ability to withstand operating temperatures to 1,800℃, make it a good choice for heat retention or equilibration media.  All produced batches are tested according to the standard quality tests and a test certificate can be supplied together with the delivery. Additional testing is available on request.

Specification:

sizepiece
density
surface
area
voidageYG-ICB
bulk weight
YG-IAB
bulk weight
inchmmpcs/m3m2/m3%kg/m3kg/m3
1/8"2 - 48.000.000720441.4002.200
1/4"5 - 74.750.000420441.4002.200
3/8"9 - 111.140.000390441.4002.200
1/2"11 - 13580.000320451.4002.200
5/8”14 - 17330.000230451.4002.200
3/4"18 - 21142.000170451.4002.200
1"23 - 2771.000130451.4002.000
1 1/4"30 - 3435.000110461.3502.000
1 1/2"35 - 4019.20090471.3502.000
