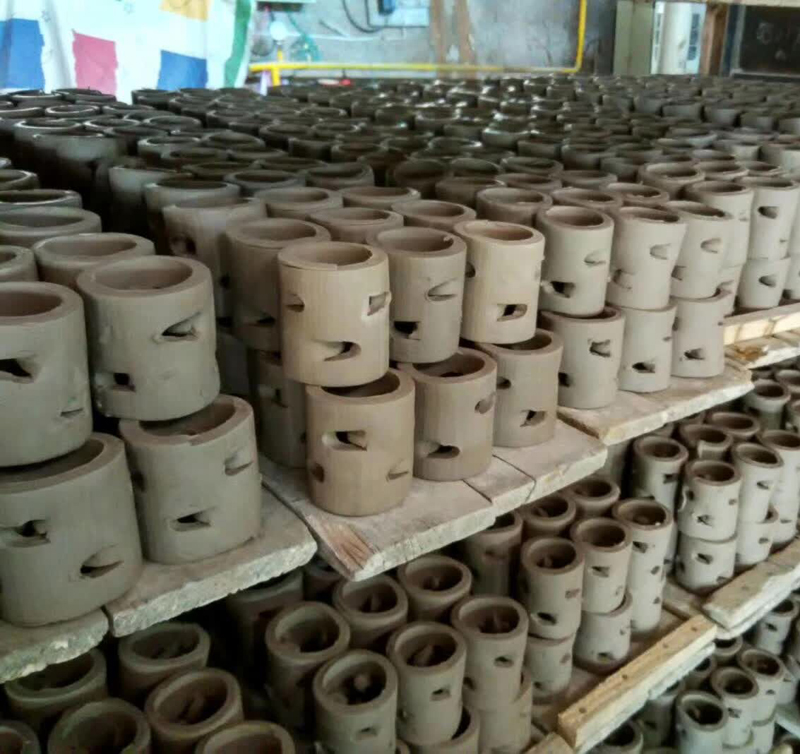

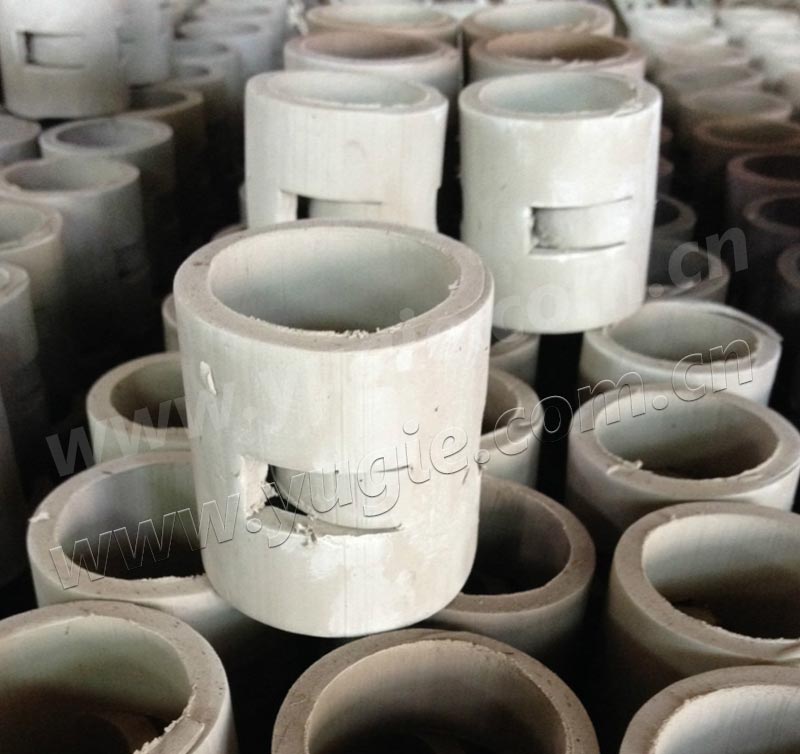

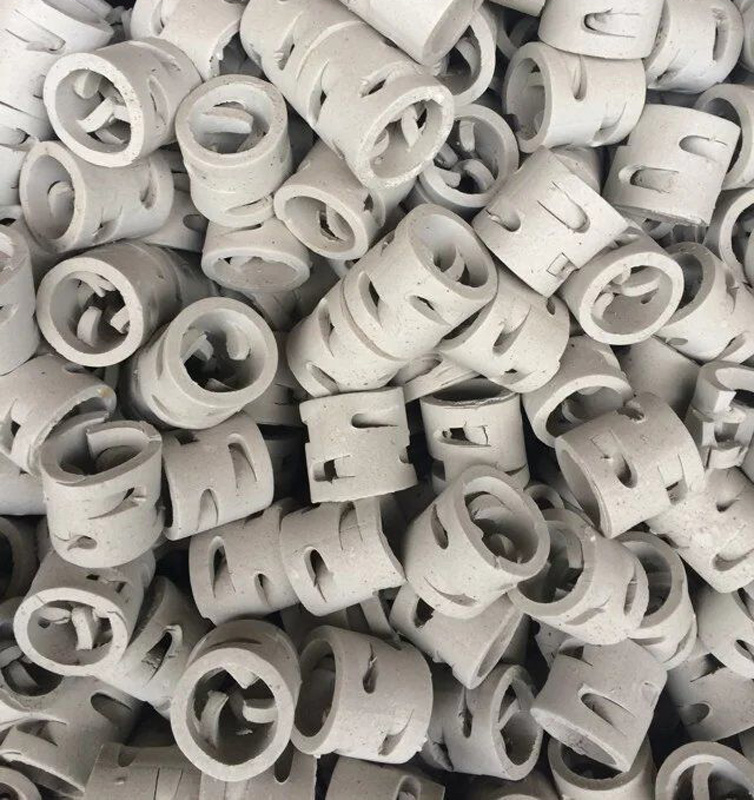

Ceramic Pall Ring

Share

Ceramic Pall Ring is a kind of new type and high efficient packing that is improved on the basis of the Raschig ring. Ceramic pall ring is a proven design that provides higher capacity and lower pressure drop than trays and other random packings. The opened cylinder walls and inward bent protrusions of the Pall Ring allow greater capacity and lower pressure drop than standard cylindrical rings.

Ceramic pall rings are originated  through improvement of raschig ring. Their open structures effectuate  separation of gas  and liquid streams and thus facilitate a more effective mass  transfer. And decrease the pressure drop.

Specification of Cermic Pall Ring:

Diameter

(mm)

Size (mm)Surface Area
 (m2/m3)
Void (%)

Weight

KG/M3

Number

(pcs/m3)

Dry packing

(factor m-1)

1616x16x2.026071680173000726
2525×25×3.02107363036000540
3838×38×4.01407559012000332
5050×50×5.0100785204900210
7676×76×9.070804701500137
