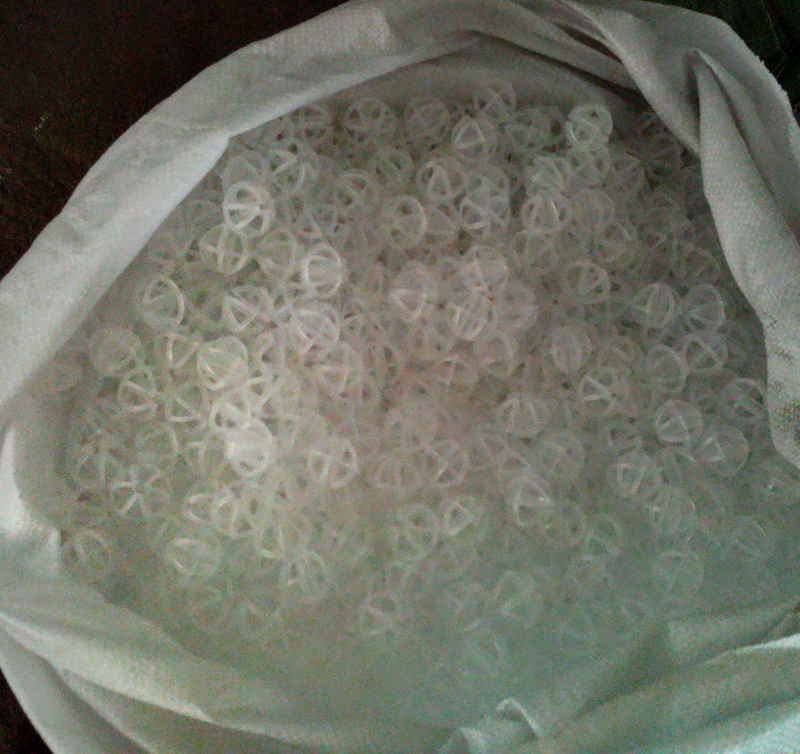

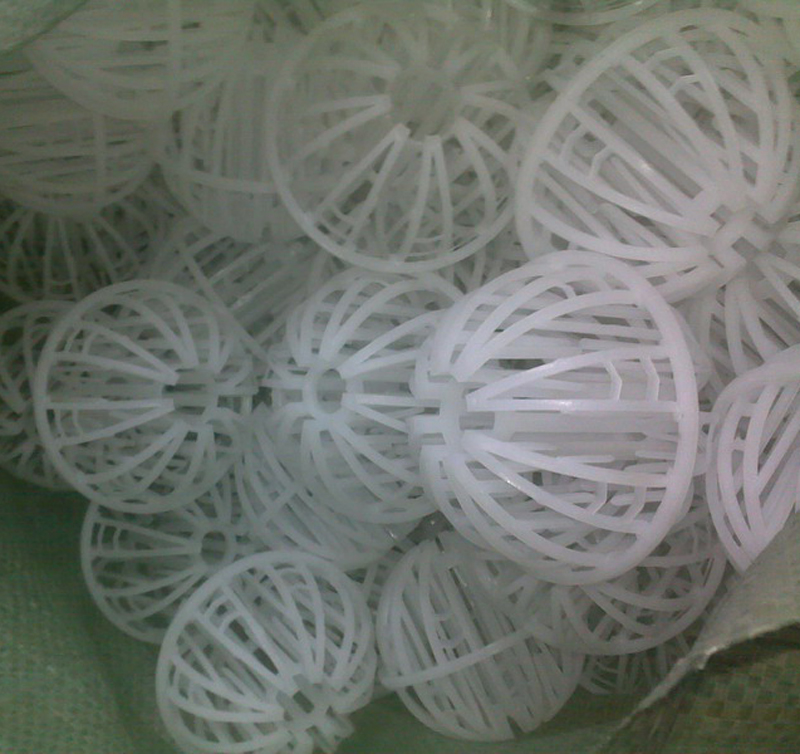

Plastic Tri-Packs is a hollow spherical shaped packing made of injection moulded plastic in four sizes: 1”, 1 1/4”, 2”and 3 1/2”diameter.
Its symmetrical geometry made from a unique network of ribs, struts and drip rods yields unprecedented performance. It has high void space, greater than packings of comparable size, and achieves superior pressure drop values, up to 90% reduction, as compared to other products. The packing has a high ACTIVE surface area, exposing all of its surface area to be fully wetted during column operation. The performance capabilities of plastic Tri-Packs have resulted in significant savings in hundreds of packed column operations.
Advantages:
Highest mass and/or heat transfer rate
Extremely low pressure drop
Resists plugging, nesting and wall channelling
Highest flooding point and lowest wetting point
Even gas and liquid distribution
No interlocking or meshing
Used as a mist eliminator
Materials: Polypropylene(PP), Reinforced Polypropylene(RPP), Polyethylene (PE), Polyvinylchloride (PVC), Corzan (CPVC), Kynar (PVDF)Reinforced Nylon 6, Reinforced Nylon 66, …
Specification:
| Properties of Tri-Packs Tower Packing | ||||
| Size (inches) | 1" | 1-1/4" | 2" | 3-1/2" |
| Geometric Surface Area (ft2 ft3) | 85 | 70 | 48 | 38 |
| Packing Factor I/ft | 28 | 25 | 16 | 12 |
| Void Space % | 90 | 92 | 93 | 95 |
| Weight (lb/ft3) | 6.2 | 5.6 | 4.2 | 3.3 |
Mass Transfer Data:
| Absorption System | G (lb./hr. ft2) | L (lb./hr. ft2) | Temp (F°) | HTU (inches) 2" & 3-1/2" | HTU (inches) 1" |
| HCl-H2O | 1792 | 2048 | 77 | 10.6 | 7.0 |
| HCl-NaOH | 1567 | 2048 | 68 | 8.8 | 6.1 |
| Cl2-NaOH | 1229 | 2202 | 122 | 14.5 | 9.9 |
| NH3-N2SO4 | 492 | 1024 | 68 | 6.0 | 4.1 |
| NH3-H2O | 512 | 1024 | 68 | 8.4 | 5.6 |
| NH3-H2O | 512 | 4096 | 68 | 5.4 | 3.6 |
| SO2-NaOH | 1946 | 4096 | 140 | 12.0 | 8.1 |
| HF-H2O | 1844 | 3072 | 77 | 6.9 | 4.6 |
| CH2COCH3-H2O | 1700 | 860 | 68 | 15.2 | 10.2 |
| H2S-NaOH | 1229 | 1331 | 68 | 19.4 | 13.0 |
| VOC Stripping | G (lb./hr. ft2) | L (lb./hr. ft2) | Temp (F°) | HTU (inches) 2" & 3-1/2" | HTU (inches) 1" |
| TCE(ppm)-H2O | 479 | 12264 | 77 | 26.9 | 21.5 |
| TCE(ppm/ppb)-H2O | 690 | 12494 | 60 | 37.6 | 30.1 |
| BTX(ppb)-H2O | 722 | 4998 | 70 | 39.2 | 31.4 |
