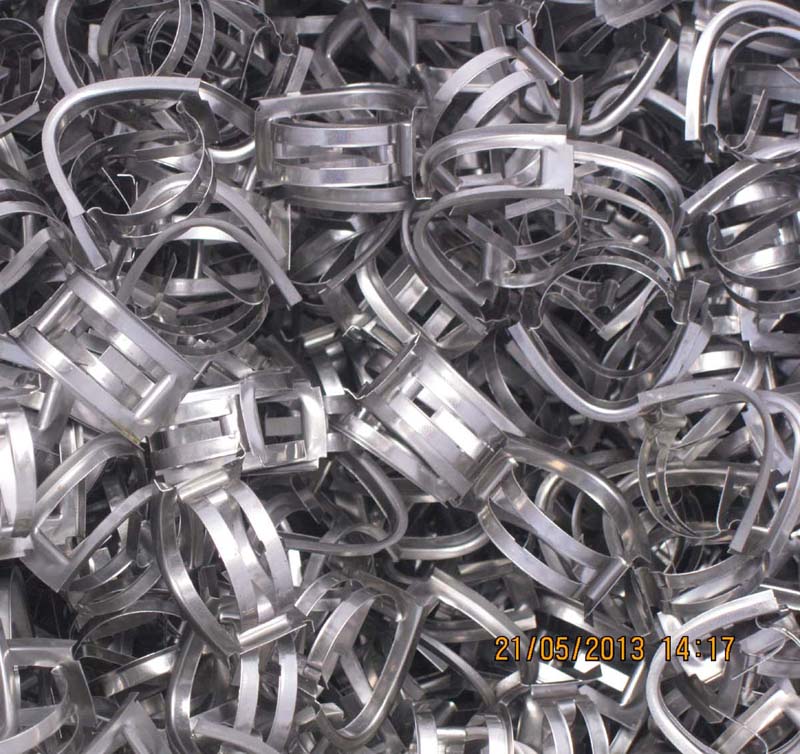

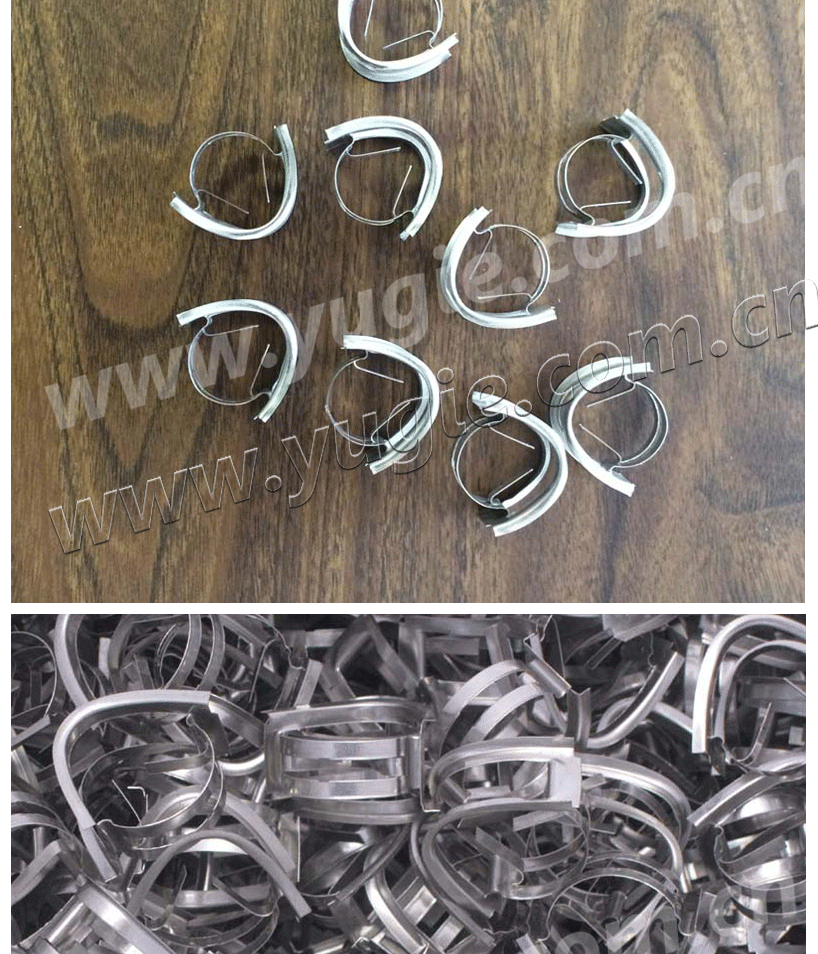

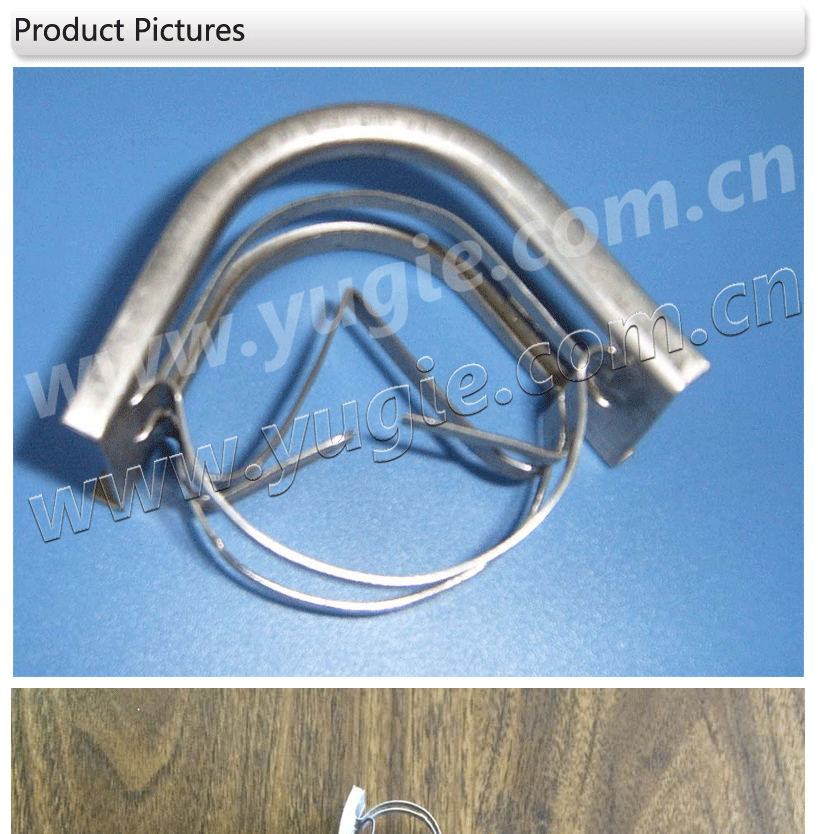

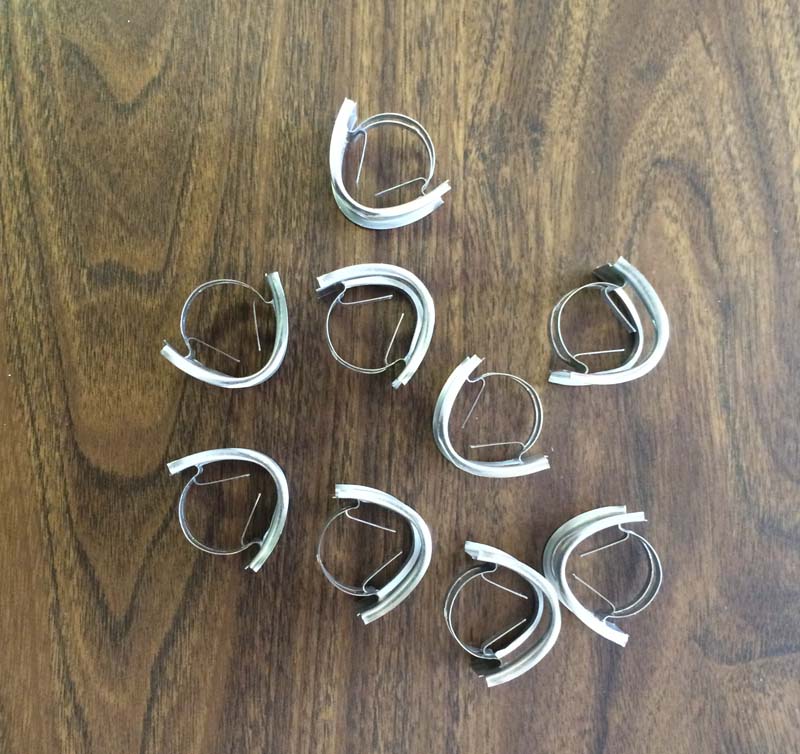

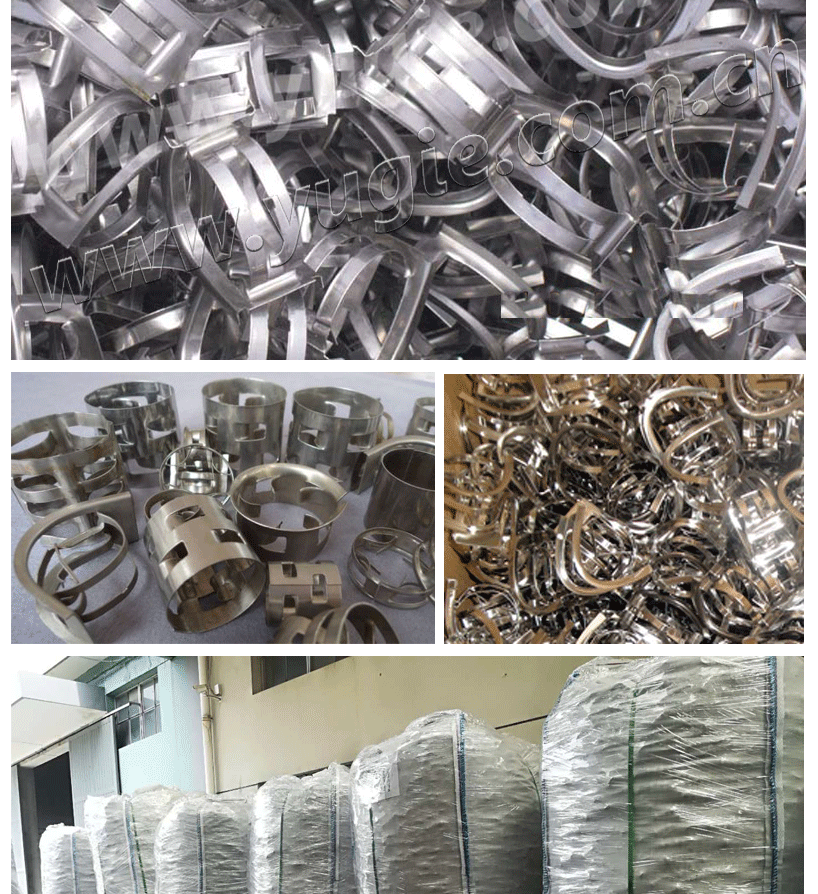

Metal Intalox Saddle Rings

Inquire Now Next Product

Metal Intalox Saddle Rings has a large gap, which is a circular arc liquid channel, which reduces the resistance of the gas through the bed layer, and also reduces the radial diffusion coefficient of liquid downward flow. The shape of the saddle ring is situated between the ring and saddle, so it has the advantage of both. This structure is beneficial to the distribution of liquid and the increase of the gas passage. Metal saddle ring because of its high density and excellent heat resistance and acid resistance, various inorganic acid, hydrofluoric acid can in addition to outside organic acid and organic solvent corrosion.

Specification:

Diameter (mm)	D x H x T (mm)	Surface (M2/M3)	Free Vol (%)	Number Per M3	Weight (Kgs/M3)	Dry packing factor(m^-1)
Φ 25	25x13x0.5	221	0.95	98120	383	257
Φ 38	38x19x0.6	153	0.96	30040	325	173
Φ 50	50x25x0.8	109	0.96	12340	308	123
Φ 76	76x38x1.0	75	0.96	3540	306	85
