Metal Raschig Ring

Share

Raschig Ring was developed by F. Raschig in 1914. It is the first invented with a fixed geometry bulk packing. Its shape is simple, and the height is equal to the diameter of the diameter. Widely used in adsorption, steaming and distilling performance, oil refinery, petrochemical industry, chemical industry and air pollution control etc., and also contracts anticorrosion engineering and environmental protection.

Specification:

Size

D x H x T

(mm)

Surface

(M2/M3)

Free Vol(%)

Number

(Pc/m3)

Weight

(kg/m3)

Dry packing factor

(m-1)

1616x16x0.43380.94216479496407
2525x25x0.51840.9546262355215
3838x38x0.61280.9614126294145
5050x50x0.8950.965933296107
7676x76x1.0660.97180125072

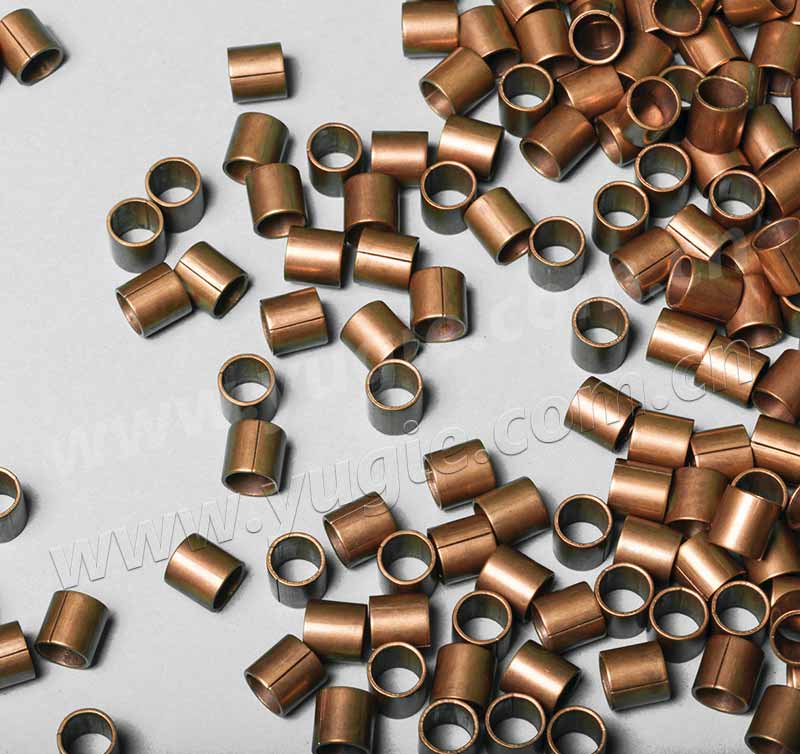

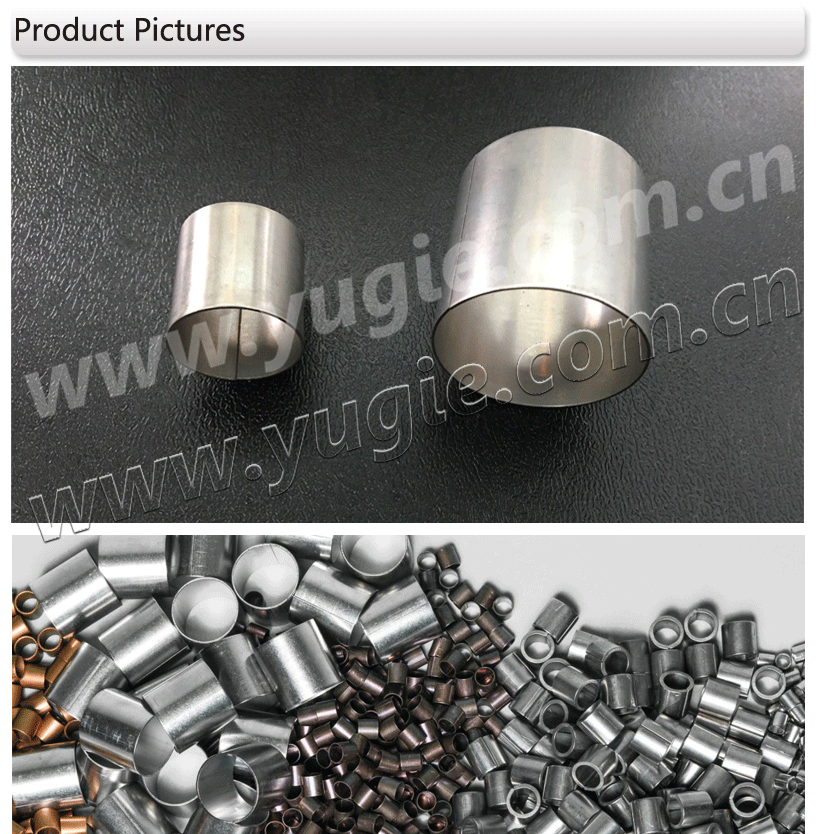

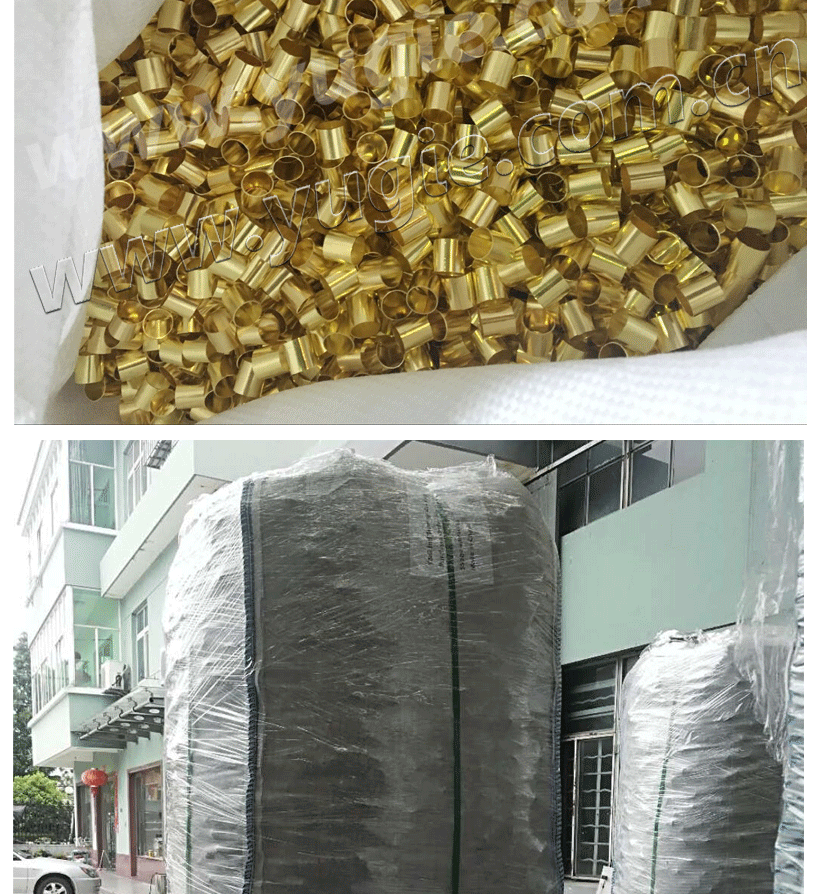

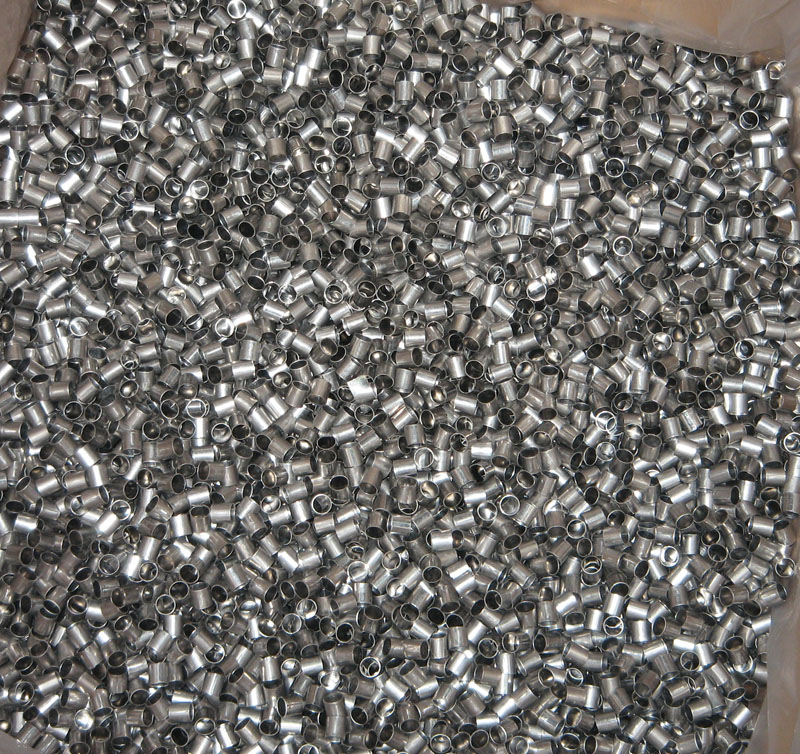

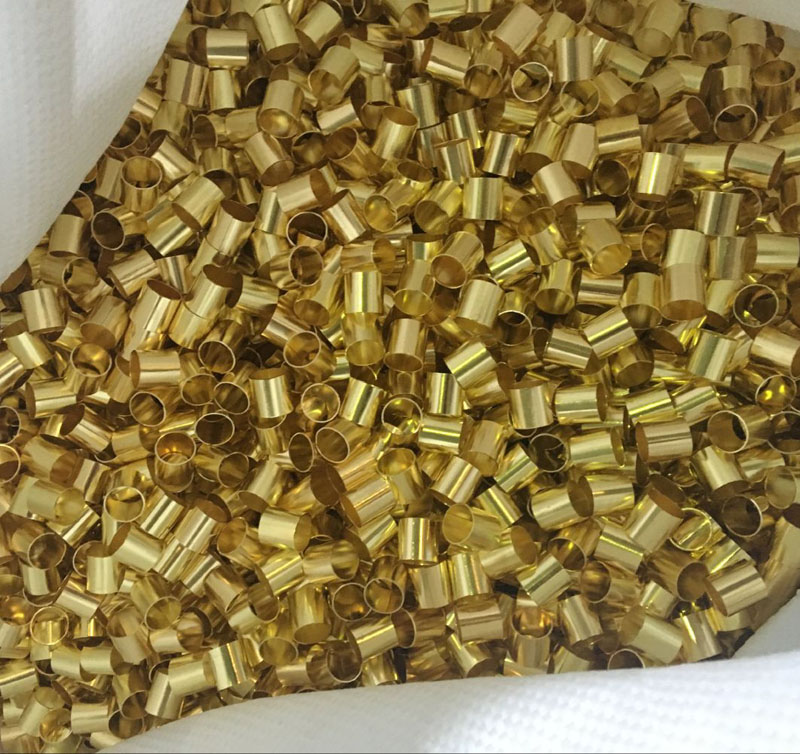

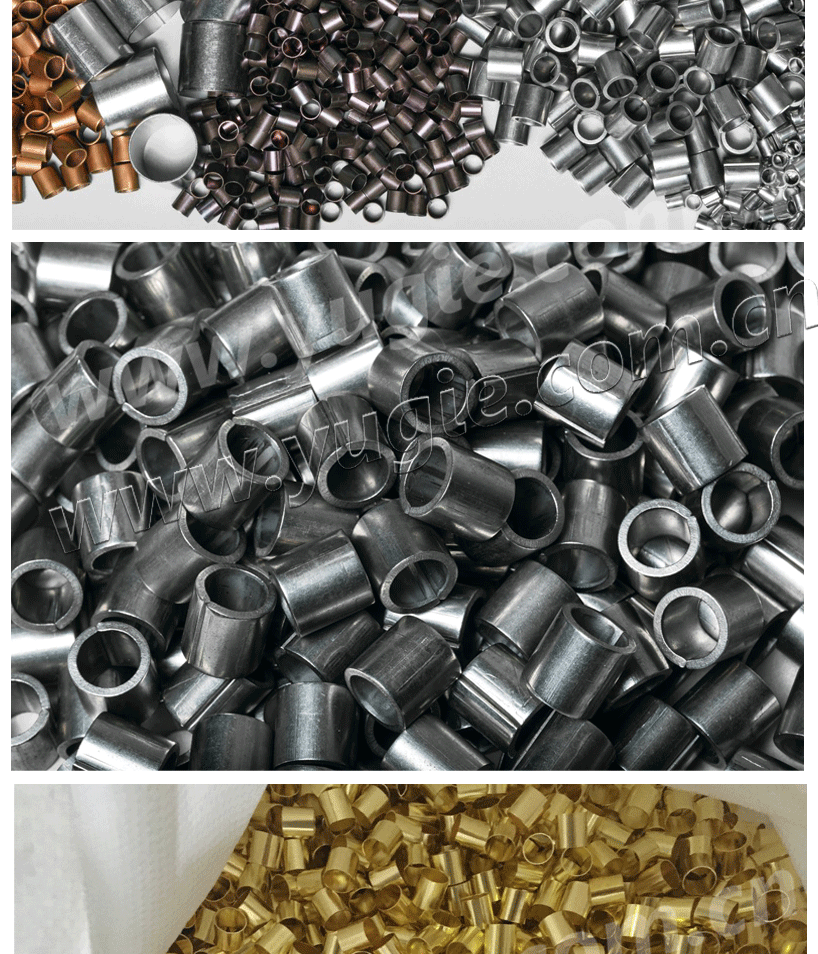

Metal Raschig RingMetal Raschig RingMetal Raschig RingMetal Raschig Ring
