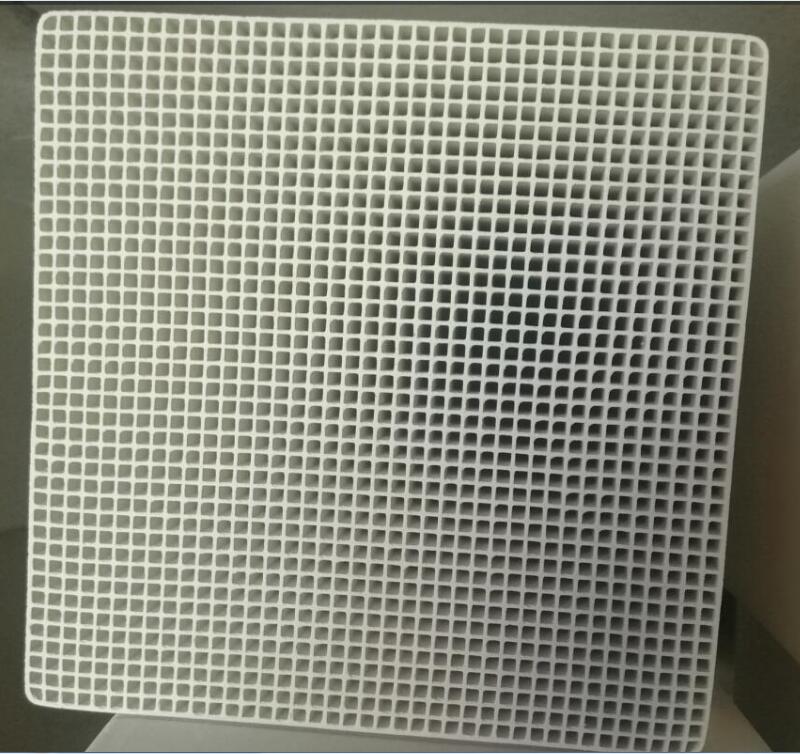

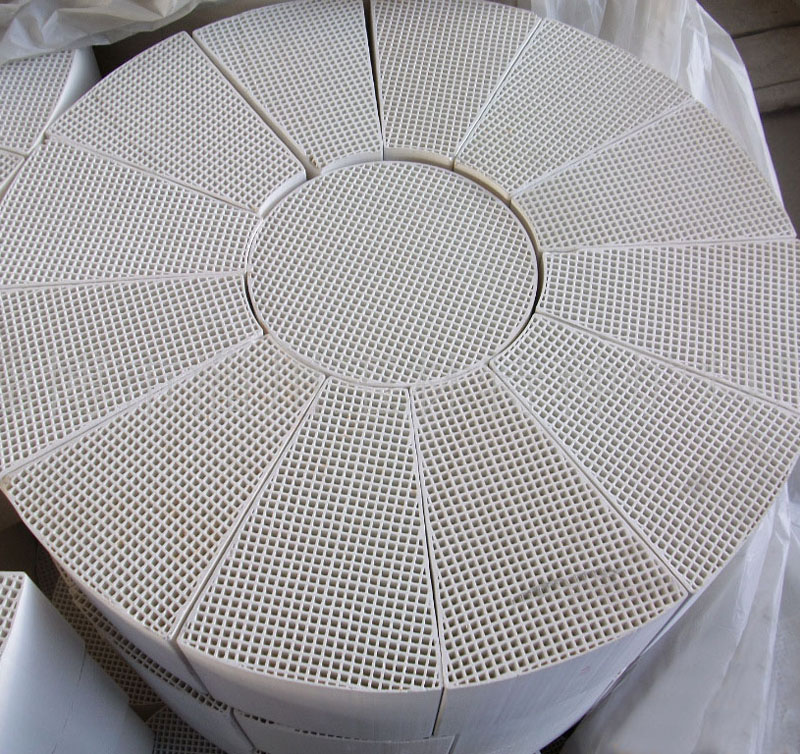

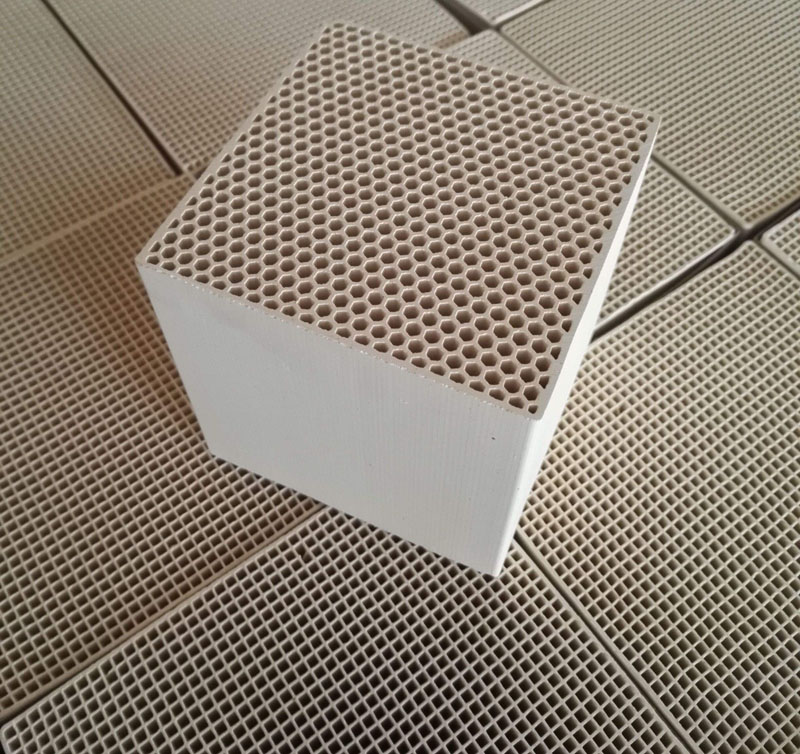

The Multichannel Bricks is made of cordierite, mullite and ceramics, which can be used for catalyst carriers and heat media and widely used in vehicle industry and the process equipment of oil refinery, petrochemical industry, chemical industry and electric powder industry and also at large scale applied in RTO, SCR and RCO system in the processes of industrial emitting gases( NOX, VOC).
Technical Date:
| Channels Density (Cell/in2) | 18 | 34 | 35 | 46 | 53 | 72 | 100 | |||
| Length×Width (mm) | 150×150 | 150×150 | 150×150 | 150×150 | 150×150 | 150×150 | 150×150 | |||
| No. of Channels | 25×25 | 34×34 | 35×35 | 40×40 | 43×43 | 50×50 | 59×59 | |||
| Width of Channel(mm) | 4.9 | 3.9 | 3.3 | 3.0 | 3.0 | 2.26 | 2.15 | |||
| Thickness of Wall (mm) | 1.0 | 0.45 | 1.0 | 0.7 | 0.5 | 0.72/0.55 | 0.381 | |||
| Surface Area (m2/m3) | 540 | 805 | 695 | 825 | 1000 | 1008 | 1339 | |||
| Type | Size（mm） | Channels | Channel Width (mm) | Thickness of Wall(mm) | Surface Area(m2/m3) | |||||
| MCB-18 | 150×150×300 | 25×25 | 4.9 | 1.0 | 540 | |||||
| MCB-46 | 150×150×300 | 40×40 | 3.0 | 0.7 | 825 | |||||
| MCB-72 | 150×150×300 | 50×50 | 2.26 | 0.72 | 1008 | |||||
| MCB-100 | 150×150×300 | 59×59 | 2.15 | 0.381 | 1339 | |||||
