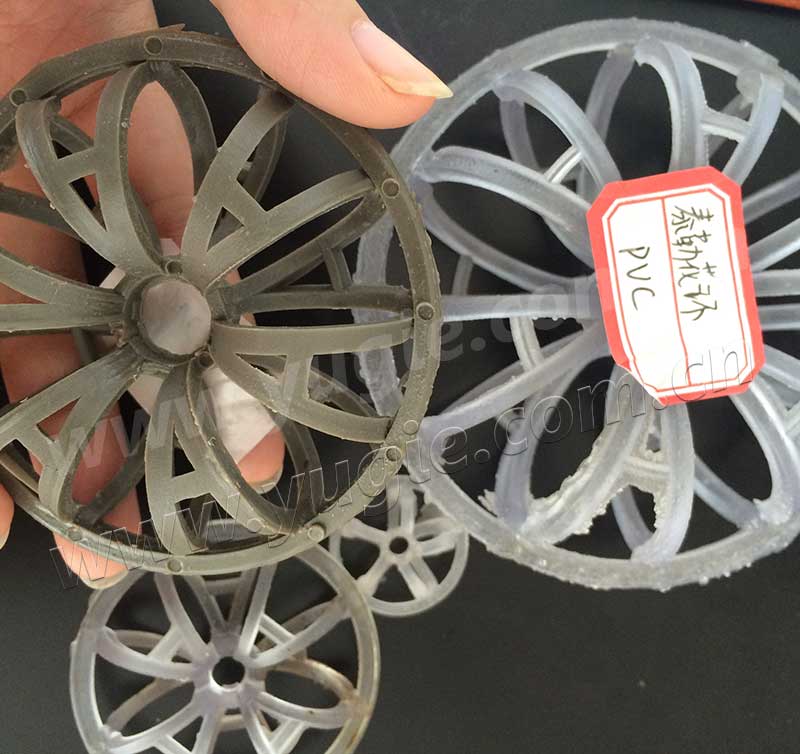

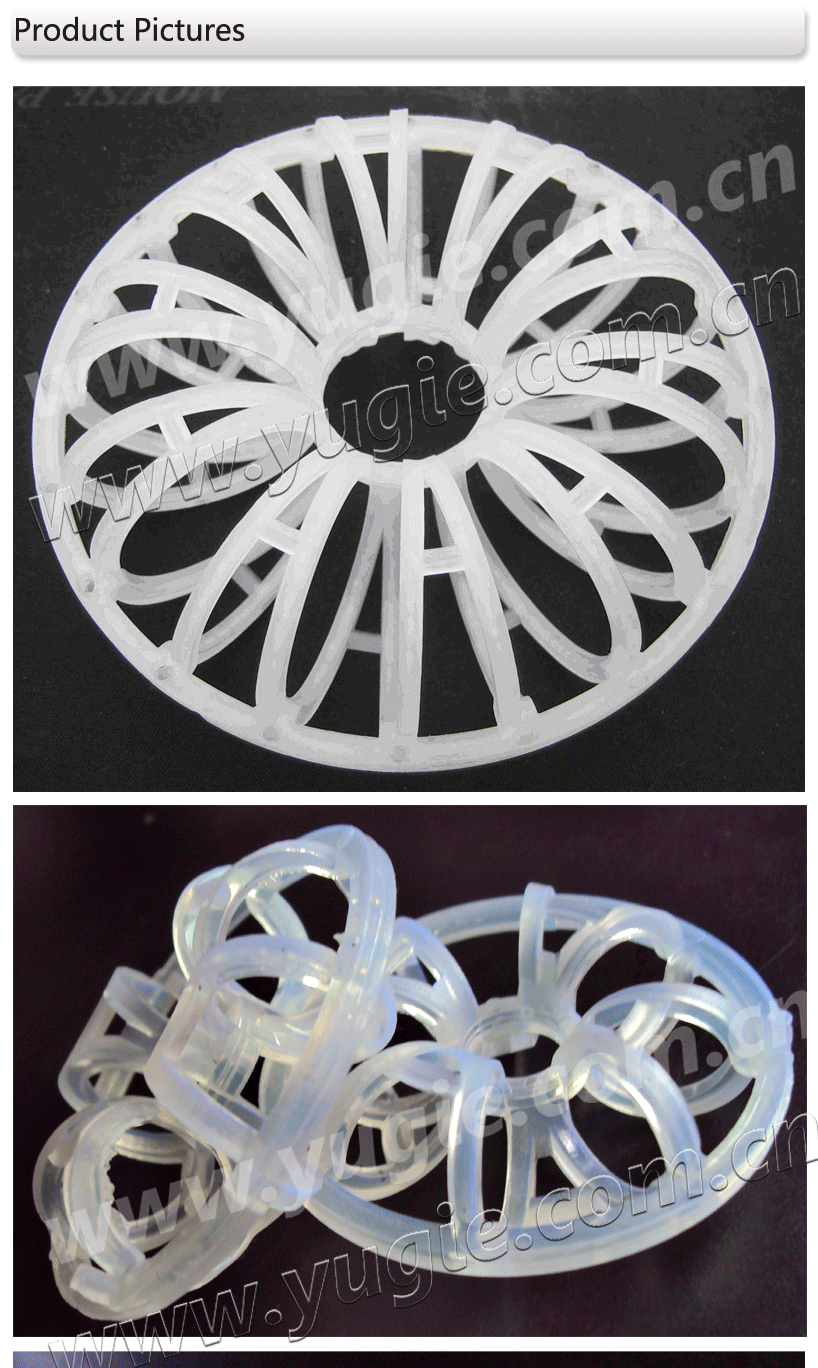

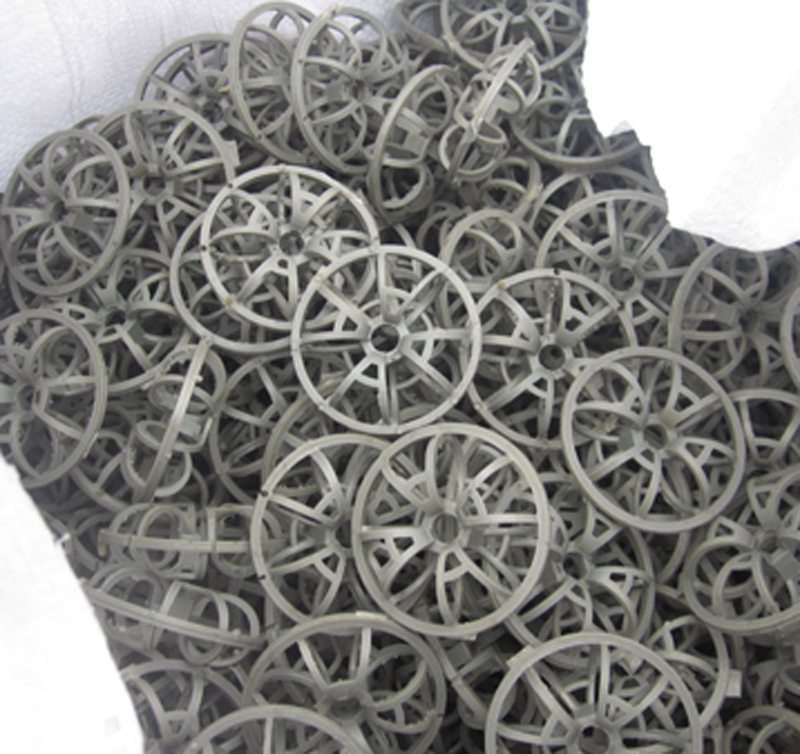

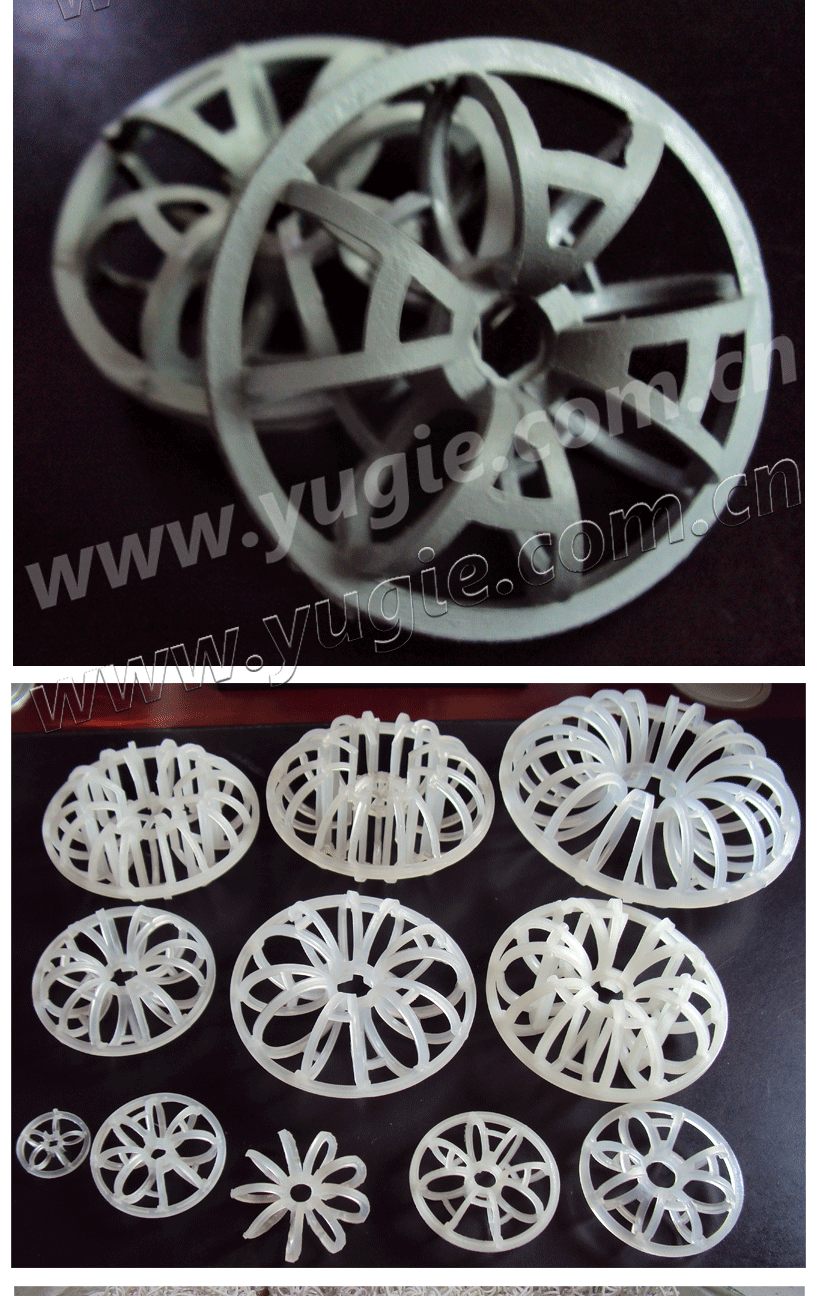

Plastic Tellerette Rosette Ring

Inquire Now Next Product

Plastic Tellerette Rosette Ring is also named Teller Ring or Rosette Ring which is made up of twelve radial arranged small rings. It is also an economical and versatile industry standard with well known performance characteristics. We can supply different materials such as polyethlene(PE), polypropylene(PP), reinforced polypropylene(RPP), polyvinyl chloride(PVC), chlorinated polyvinyl chloride(CPVC) and polyvinylidene fluoride(PVDF) based on different application requirements.

Advantages: Lower pressure, energy, mass transfer efficiency

Application: Absorption, scrubbing, and stripping services etc.

Specification:

Dia	High(mm)	Thick Number	Number per m3	Surface Area (m2/m3)	Void Rate (m3/m3)	Bulk Density (Kg/M3)
1”(25mm)	9	1.5*2	175000	269	0.86	128
1.85”(47mm)	19	3*3	32500	185	0.88	111
2”(51mm)	19	3*3	25000	180	0.89	103
2.3”(59mm)	19	3*3	17500	150	0.89	102
3”(73mm)	27.5	3*4	8000	127	0.89	102
4”(95mm)	37	3*6	3600	94	0.90	88
6”(145mm)	48	3*6	1100	65	0.95	47

Plastic Tellerette Rosette Ring
